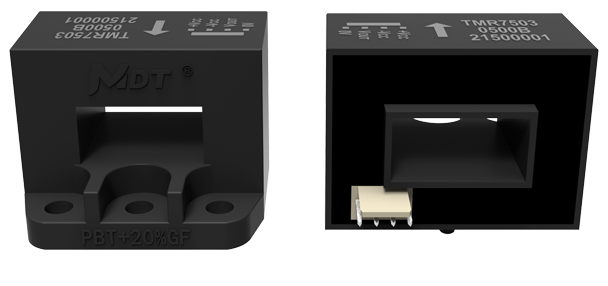

TMR7503-B Unibody Low Temperature-Drift Current Sensor
  • TMR7503-B-big
Part No.：TMR7503-B
Nominal current(A)：50 to 600
Current range(A)：±150 to ±950
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.5/±1.5
Linearity(%FS)：0.4
Offset(mV)：±10/±20
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +105

Description

TMR7503-B is an open loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuit.

TMR7503-BTMR7503-B

Features and Benefits

iconLow temperature coefficienticonGalvanic isolation
iconHigh immunity to external interferenceiconExcellent linearity
iconLight weight and compacticonRoHS & REACH compliant

Applications

iconDC motor drivesiconInverters and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconBattery management system (BMS)
iconSwitching power suppliesiconPower supplies for welding application
iconCommunication power supplies
