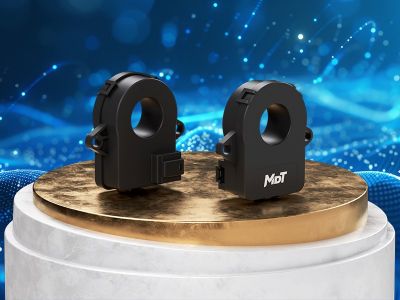

TMR7102-E CAN Bus Digital Output Current Sensor
  • TMR7102-E-big
Part No.：TMR7102-E
Nominal current(A)：500
Current range(A)：±580
Voltage(V)：13.5
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.5 to ±0.6
Linearity(%FS)：/
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：/
Operating Temperature(℃)：-40 to +85

Description

TMR7102-E is closed loop current sensors for accurate measurement of DC current with galvanic isolation between primary and secondary circuits.

TMR7102TMR7102-E

Features and Benefits

iconLow temperature coefficienticonGalvanic isolation
iconHigh immunity to external interferenceiconHigh accuracy among all temperature ranges
iconCAN bus output

Applications

iconFull electric vehicle current measurementiconHybrid vehicle current measurement
iconBattery energy storage systems (BESS)
