TMR7304-D Board Mount Precision Current Sensor

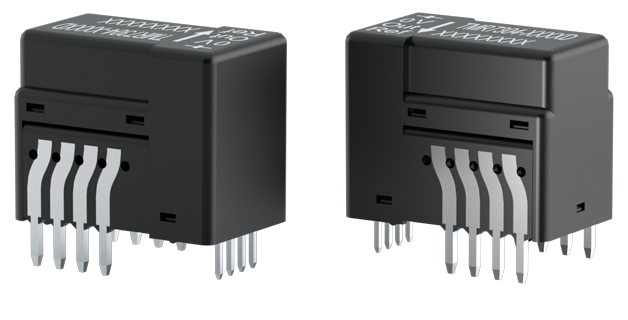

  • TMR7304-D-big
Part No.：TMR7304-D
Nominal current(A)：6 to 50
Current range(A)：±20 to ±150
Voltage(V)：5
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.8 to 1.4
Linearity(%FS)：±0.3
Offset(mV)：-5 to 5
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7304-D is a closed loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

tmr7304-dTMR7304-D

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconLow temperature coefficienticonFast response time
iconGalvanic isolationiconRoHS & REACH compliant

Applications

iconSolar invertericonDirect-current dynamo
iconUninterruptible power supplies (UPS)iconSwitched model power supplies (SMPS)
iconVariable frequency drive (VFD)
