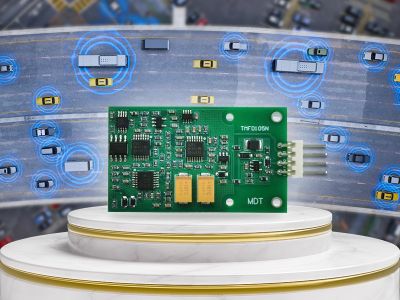

TMR8105N Single-axis, Low Noise, High Transient Response Magnetic Sensor
  • TMR8105N-big
Part No.：TMR8105N
Sensing Direction：Single axis
Frequency Response(-3dB)：0 to 10 Hz
Supply Voltage(V)：5
Measuring range(μT)：±300
Sensitivity(mV/μT)：40000
Magnetic Field Spectral Noise Density(pT/√Hz@1Hz)：100
Linearity error(%FS)：1

Description

The TMR8105N features single-axis, low-noise, high transient response magnetic sensors that utilize the miniaturized, ultra-low noise TMR sensor. These sensors employ phase-sensitive detection and weak magnetic signal modulation technology to convert broad passband measurements into narrowband measurements. This tech- nique significantly reduces the interference of 1/f noise, enhancing the signal-to-noise ratio of weak magnetic signals. Consequently, it enables high transient response and high-resolution detection of weak magnetic signals, facilitating ultra-long-distance detection of ferromagnetic materials.

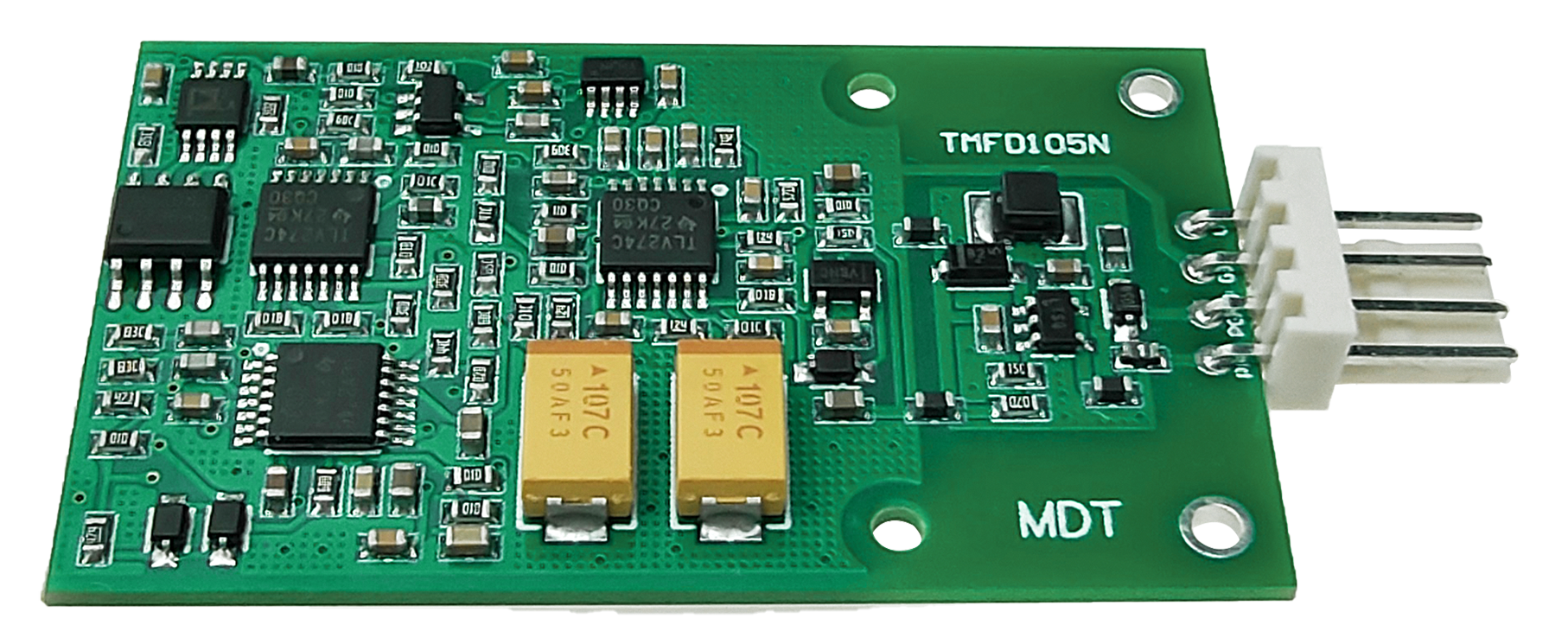

TMR8105NTMR8105N

Features and Benefits

iconHigh-resolution measurementsiconLarge saturation field: typ. ±600 μT
iconHighly integrated design, easy secondary integrationiconWide background magnetic field: typ. ±300 μT
iconExcellent detection capabilities for dynamic weak magnetic fields at low frequencies

Applications

iconSecurity systemiconMagnetic material detection
iconTraffic flow control
