TMR2905 Ultra High Sensitivity TMR linear sensor
  • TMR2905-big
Part No.: TMR2905
Bridge Configuration: Full bridge
Supply Voltage(V): 0 to 7
Sensitivity (mV/V/Gs): 45 to 65
Resistance (kΩ): 45, 2 to 8
Saturation Field (Gs): ±11
Sensing Direction: Y-axis
Hysteresis (Gs): ＜0.8
Noise (nT/rt(Hz) @1Hz): ~ 2
Package: SOP8 DFN8L(3×3×0.75)
Lead Time: In stock

Description

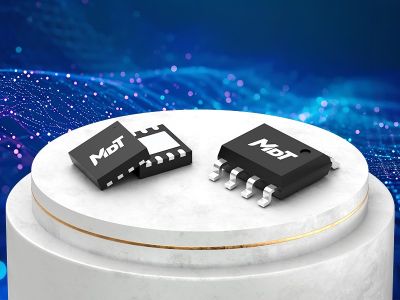

The TMR2905 linear sensor utilizes a unique push-pull Wheatstone bridge composed of four unshielded TMR sensor elements. The unique bridge design provides a high sensitivity differential output that is linearly proportional to a magnetic field applied parallel to the surface of the sensor package, and it provides superior temperature compensation of the output. TMR2905 is available in two compact SOP8 and DFN8L (3mm × 3mm × 0.75mm) packages.

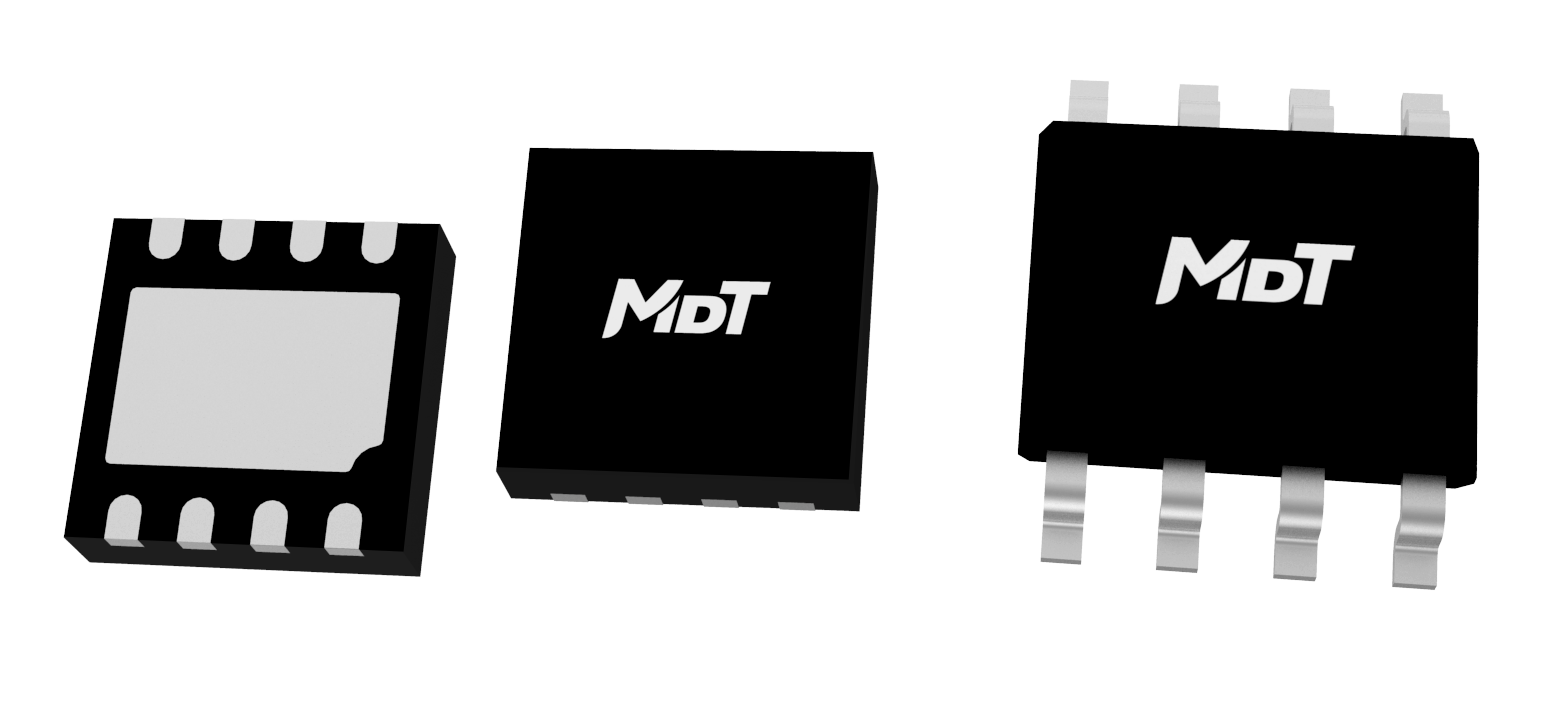

SOP8 DFN8LDFN8L                            SOP8

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconUltra high sensitivity (50~60mV/V/Gs)
iconUltra low noise spectral density (＜2nT/sqrt(Hz)@1Hz)iconVery low power consumption
iconExcellent thermal stabilityiconVery low hysteresis
iconCompatible with wide range of supply voltagesiconLarge dynamic range
iconRoHS & REACH compliant

Applications

iconWeak magnetic field sensingiconCurrent sensors
iconPosition and displacement sensing
