AMR1341 High-Sensitivity Pneumatic Cylinder Switch Sensor
  • lga3l和dfn3l英
Part Number: AMR1341
Compatible Part Number: —
Type: Omnipolar
Supply Voltage(V): 1.6~5 V
Power consumption(μA): 40 μA
Power Mode: power cycling
Sensing Direction: X-axis
Bop (Gs,25°C)(Gs): ±15
Brp (Gs,25°C)(Gs): ±10
Output Interface: CMOS
Package: DFN3L(2x2x0.55) LGA3L(2×1.5×0.63)
Lead Time: In stock


The AMR1341 is a digital omnipolar magnetic switch that integrates magnetoresistance and CMOS technology to provide a magnetically triggered digital switch with high sensitivity, high speed, and low power consumption. It is designed for pneumatic cylinder position sensing in industrial applications.

It contains a full-bridge push-pull anisotropic magnetoresistance (AMR) sensor and CMOS signal processing circuitry within the same package, including an on-chip voltage generator and voltage amplifier and comparator for precise magnetic sensing, plus a Schmitt trigger to provide switching hysteresis for noise rejection, and CMOS push-pull output. An internal band gap regulator is used to provide a temperature compensated supply voltage for internal circuits, permitting a wide range of supply voltages.

The AMR1341 operates in low voltage and draws only 40 μA resulting in low power operation. It has fast response, accurate switching points, excellent thermal stability, and immunity to stray field interference. AMR1341 is available in two compact DFN3L (2mm × 2mm × 0.55mm) and LGA3L (2mm × 1.5mm × 0.63mm) packages.

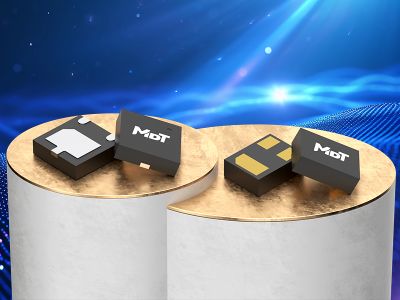

lga3l、dfn3lLGA3L                          DFN3L

Features and Benefits

iconAnisotropic magnetoresistance (AMR) technologyiconLow power consumption at 40 μA
iconPower cycling latching switchiconFast switching frequency: typ.1 kHz
iconOmnipolar operationiconHigh sensitivity
iconWide range of supply voltagesiconExcellent temperature stability
iconHigh tolerance to external magnetic field interferenceiconRoHS & REACH compliant


iconPneumatic cylinder position switches

The information provided herein by MultiDimension Technology Co., Ltd. (MDT) is believed to be accurate and reliable. The technology disclosed by MDT does not infringe the patents of other companies and owns independent intellectual property rights. We reserve the right to change the specification of products and/or the information given herein at any time to improve product quality, reliability and functionality. MDT does not assume any liability arising out of the application and use of its products.
