TMR2185 Large Dynamic Range TMR Linear Magnetic Sensor

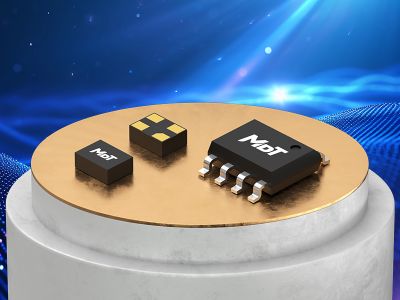

  • TMR2185-big
Part No.: TMR2185
Bridge Configuration: Full bridge
Supply Voltage(V): 0.5 to 7
Sensitivity (mV/V/Gs): 0.34
Resistance (kΩ): 4.3
Saturation Field (Gs): ±1000
Sensing Direction: Y-axis
Hysteresis (Gs): 0.3
Noise (nT/rt(Hz) @1Hz): /
Package: SOP8 LGA4L（2×1.5×0.73）
Lead Time: In stock

Description

TMR2185 TMR linear sensor adopts a unique push-pull Wheatstone full bridge structure utilizing four TMR sensor elements. This Wheatstone full bridge provides differential voltage output with excellent temperature stability when the applied magnetic field changes parallel to the sensor’s sensitive direction. TMR2185 magnetic linear sensor is available in SOP8 and LGA4L (2mm × 1.5mm × 0.73mm) package with P/N of TMR2185P and TMR2185G.

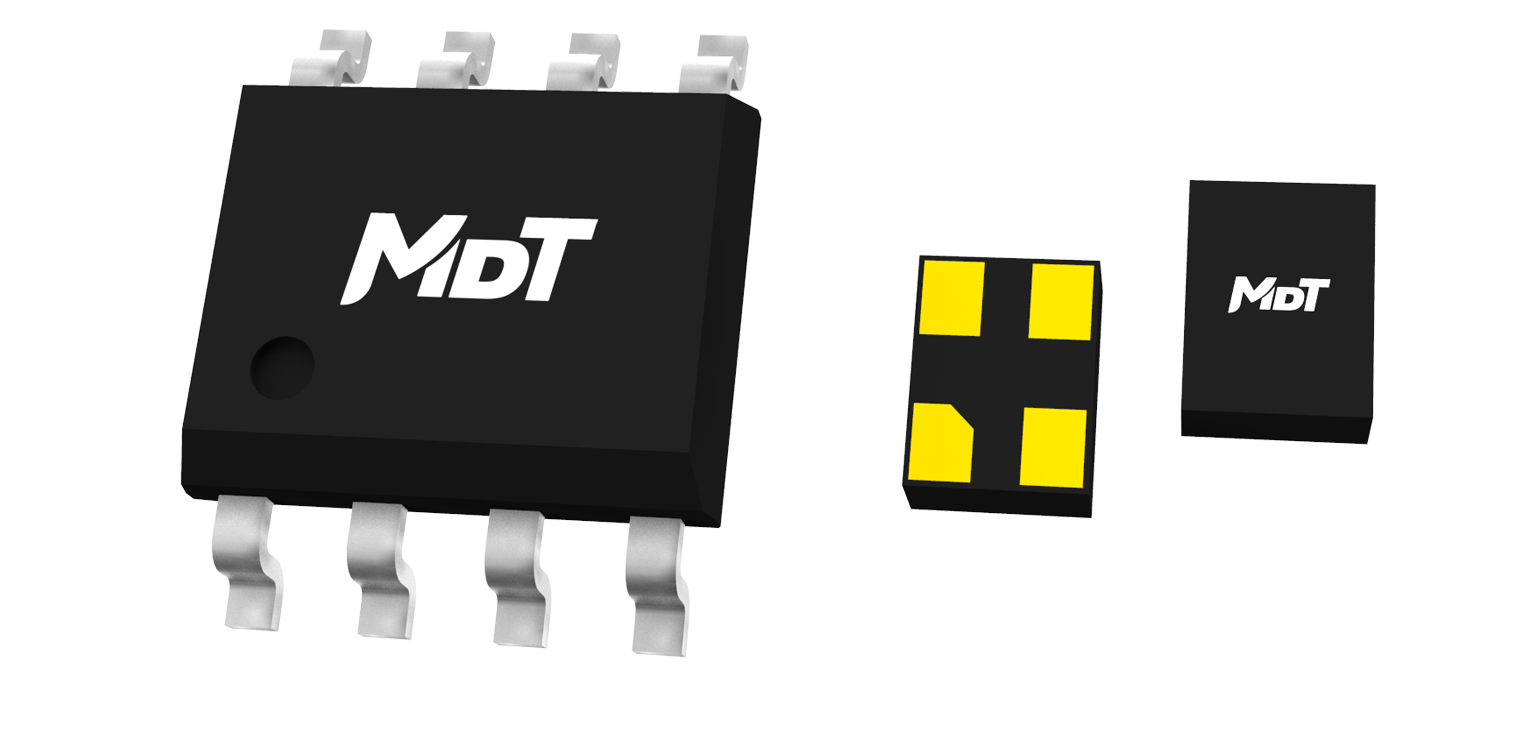

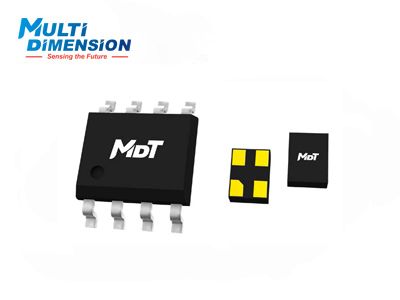

SOP8、LGA4LSOP8                    LGA4L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity
iconLarge dynamic rangeiconLow power consumption
iconExcellent temperature stabilityiconRoHS & REACH compliant

Applications

iconMagnetometericonCurrent sensor
iconPosition sensoriconRotation sensor
