TMR2083 TMR Linear Magnetic Sensor

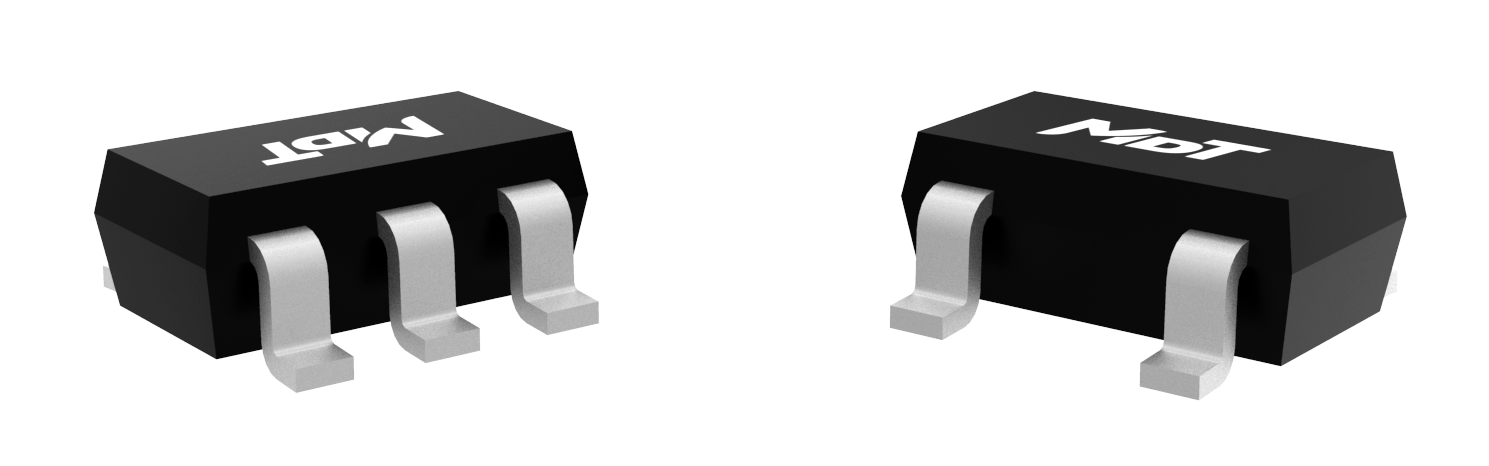

  • TMR2083-big
Part No.: TMR2083
Bridge Configuration: Full bridge
Supply Voltage(V): 0.5 to 7
Sensitivity (mV/V/Gs): 0.2
Resistance (kΩ): 10
Saturation Field (Gs): ±1000
Sensing Direction: X-axis
Hysteresis (Gs): 2
Noise (nT/rt(Hz) @1Hz): /
Package: SOT23-5
Lead Time: In stock

Description

TMR2083 TMR linear sensor adopts a unique push-pull Wheatstone full bridge structure utilizing four unshielded high sensitivity TMR sensing elements. This Wheatstone full bridge provides differential voltage output with excellent temperature stability when the applied magnetic field changes parallel to the sensor’s sensitive direction. The TMR2083 is available in SOT23-5 package with P/N of TMR2083S.

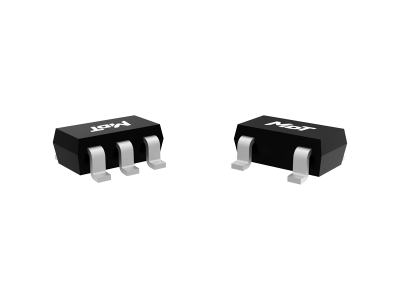

SOT23-5SOT23-5

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconLarge dynamic range: ±500 Gs
iconNon-linearity: 0.2%iconExcellent temperature stability
icon RoHS and REACH compliant

Applications

iconMagnetometericonCurrent sensor
iconPosition sensoriconRotation sensor
  • New Products
  • New Products
  • New Products
  • TMR2615x-AAC

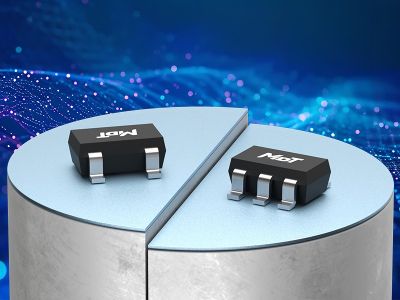

    TMR2615x-AAC
