TMR2901 Ultra High Sensitivity TMR linear sensor
  • TMR2901-big
Part No.: TMR2901
Bridge Configuration: Full bridge
Supply Voltage(V): 0 to 7
Sensitivity (mV/V/Gs): 25
Resistance (kΩ): 45, 7 to 10
Linear Range (Gs): ±10
Sensing Direction: Y-axis
Hysteresis (Gs): 0.2
Noise (nT/rt(Hz) @1Hz): ~ 2
Package: SOP8 DFN8L
Lead Time: In stock

Description

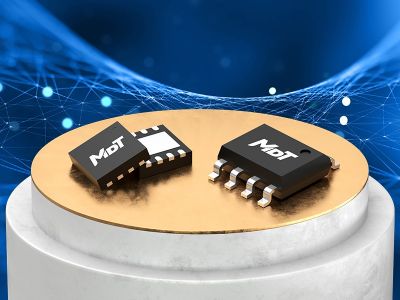

The TMR2901 linear sensor utilizes a unique push-pull Wheatstone bridge composed of four TMR sensor elements. TMR2901 is available in two compact SOP8 and DFN8L (3mm × 3mm × 0.75mm) packages.

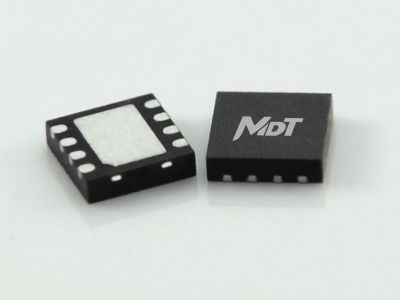

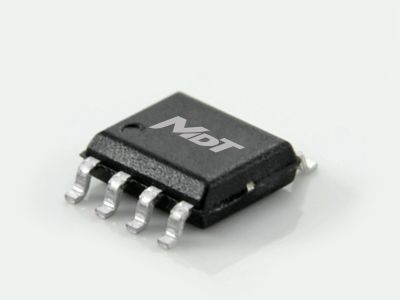

SOP8 DFN8LDFN8L                            SOP8

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity (25mV/V/Gs)
iconVery low noise spectral density (2nT/√Hz@1Hz)iconLow power consumption
iconExcellent thermal stabilityiconVery low hysteresis
iconCompatible with wide range of supply voltagesiconNO need for set/reset calibration
iconRoHS & REACH compliant

Applications

iconWeak magnetic field sensingiconCurrent sensors
iconPosition and displacement sensing

The information provided herein by MultiDimension Technology Co., Ltd. (MDT) is believed to be accurate and reliable. The technology disclosed by MDT does not infringe the patents of other companies and owns independent intellectual property rights. We reserve the right to change the specification of products and/or the information given herein at any time to improve product quality, reliability and functionality. MDT does not assume any liability arising out of the application and use of its products.
