TMR2625D-AAC Low Power Programmable Dual Axis TMR Linear Magnetic Sensor
  • TMR2625D-AAC-big
Part No.: TMR2625D-AAC
Bridge Configuration: /
Supply Voltage(V): 1.71 V to 5 V
Sensitivity (mV/V/Gs): 0.700~7.000
Resistance (kΩ): /
Linear Range (Gs): ±250
Sensing Direction: X axis and Y axis
Hysteresis (Gs): 2
Noise (nT/rt(Hz) @1Hz): /
Package: DFN8L
Lead Time: In stock

Description

The TMR2625D-AAC is a low-power, dual axis, programmable TMR linear sensor IC by MultiDimension Technology. The IC integrates tunnel magnetoresistance (TMR) sensor, programmable operational amplifier, and DAC circuits to provide a linear relationship between analog output voltage and external magnetic field. The TMR unit includes two unique push-pull Wheatstone full bridges, sensitive in the X-axis and Y-axis directions.

The IC can be widely used in various position sensing applications and supports customers’demands for low voltage, high resolution, high signal-to-noise ratio, and wide linear range.

The sensor is available in a DFN8L (3 mm × 3 mm × 0.75 mm) package. The sensor complies with RoHS standards.

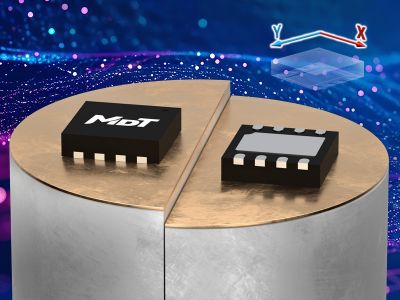

DFN8LDFN8L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconSupply voltage: 1.71 V to 5 V
iconStatic current consumption < 600 μAiconOutput voltage: 5% to 95% VDD
iconOutput voltage follows VDD changesiconLow noise
iconSensitivity with high consistencyicon Low hysteresis
iconRoHS & REACH compliant

Applications

iconJoystick controllericonConsumer electronics
