TMR2104 General-purpose Multi-function TMR Linear Sensor
  • TMR2104-big
Part No.: TMR2104
Bridge Configuration: Full bridge
Supply Voltage(V): 0 to 7
Sensitivity (mV/V/Gs): 3.1
Resistance (kΩ): 30，1
Linear Range (Gs): ±80
Sensing Direction: X-axis
Hysteresis (Gs): 0.5
Noise (nT/rt(Hz) @1Hz): ~ 10
Package: SOT23-5 SOP8 DFN8L SSIP4
Lead Time: In stock

Description

TMR2104 TMR linear sensor adopts a unique push-pull Wheatstone full bridge structure utilizing four TMR sensor elements. This Wheatstone full bridge provides differential voltage output with excellent temperature stability when the applied magnetic field changes parallel to the sensor’s sensitive direction.

This TMR2104 magnetic linear sensor are available in DFN8L (3 mm × 3 mm × 0.75 mm), SOT23-5, SOP8 and SSIP4 package with compact size and easy to weld.

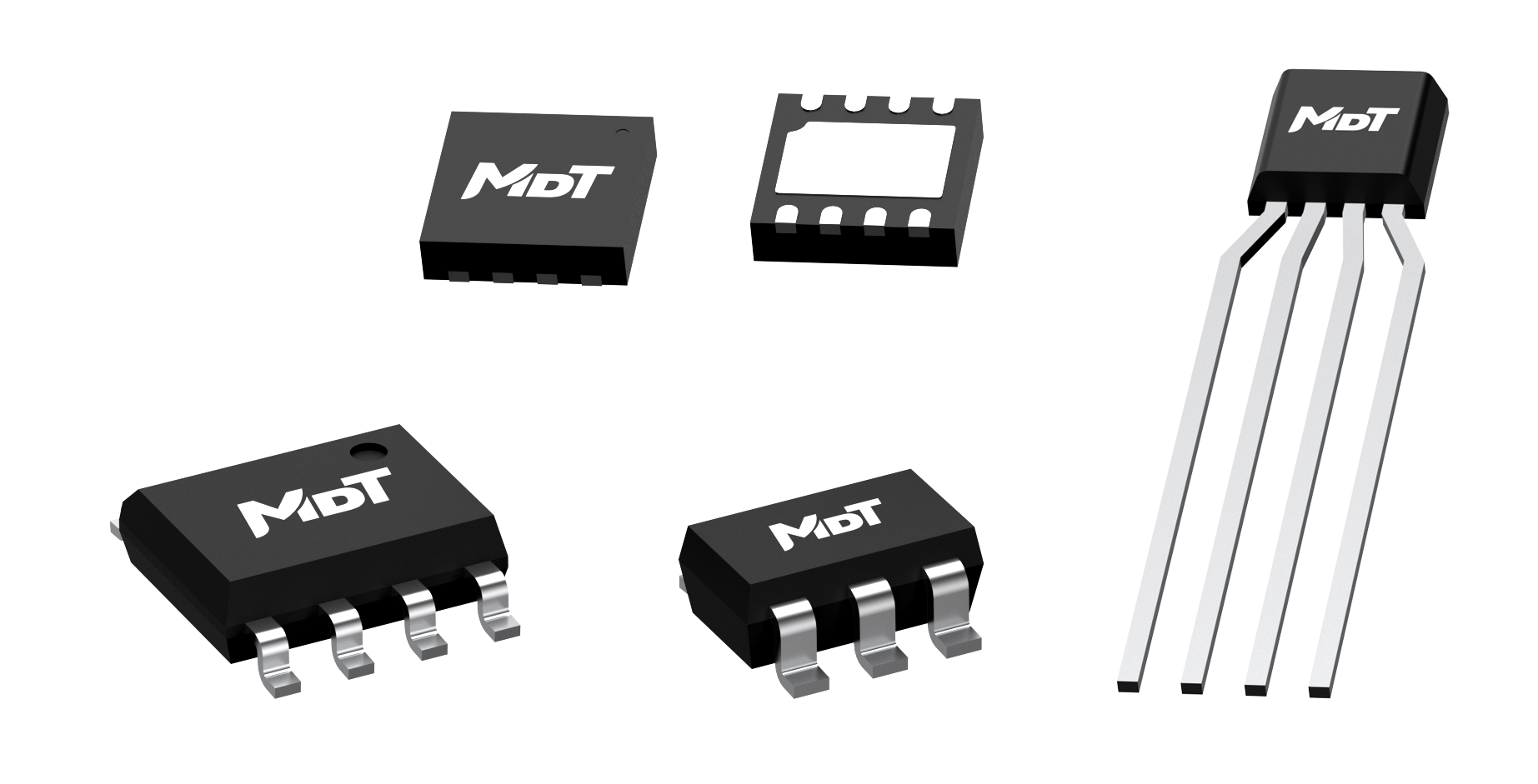

tmr2104      SOP8               SOT23-5      SSIP4DFN8L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity
iconLarge dynamic rangeiconLow power consumption
iconExcellent temperature stabilityiconRoHS & REACH compliant

Applications

iconMagnetometericonCurrent sensor
iconPosition sensoriconRotation sensor
