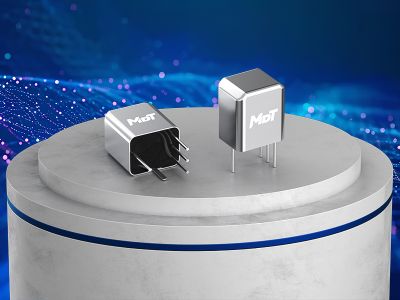

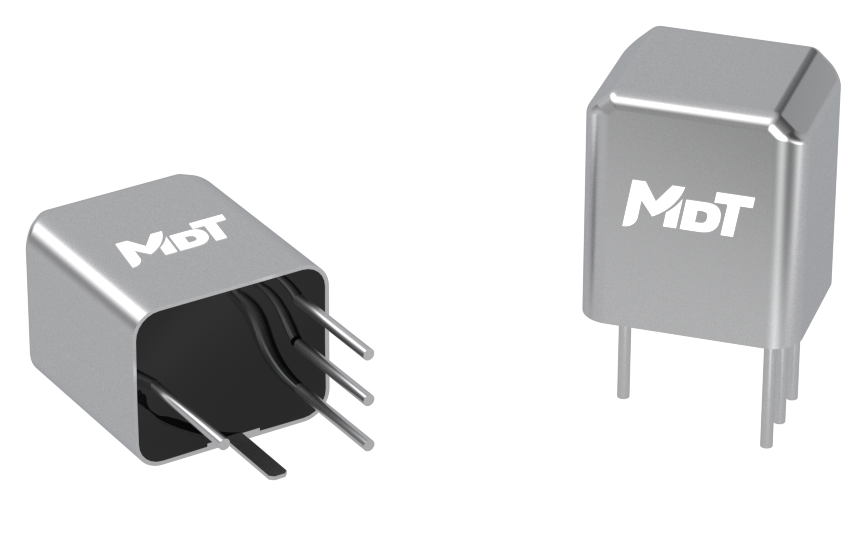

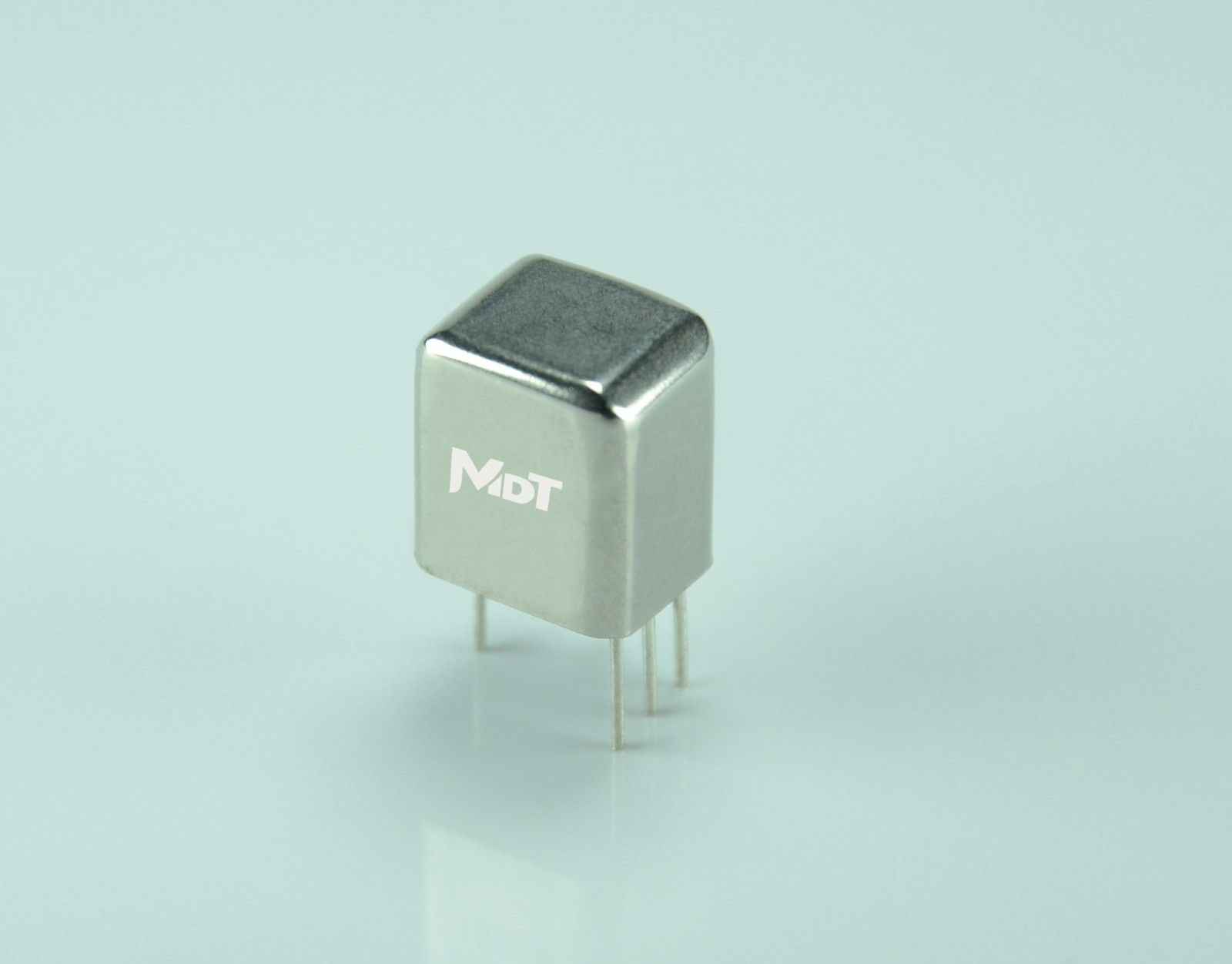

General Description：The TMR6401 is a type of single channel magnetic pattern recognition sensor with high sensitivity, high signal-to-noise ratio performance, it is used for detecting paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. The TMR6401 consists of high sensitivity TMR magneto-resistance sensor, high-quality magnet and durable metal case.

Features and Benefits：(1)High sensitivity and excellent gap performances;(2)Output voltage is independent of scanning speed;(3)Differential output, high CMRR performance;(4)Single channel detection, 5mm detection width;(5)Downsizing appearance;(6)Simple structure for low cost solutions

.

Applications：(1)Bill sorter;(2)Bill counter and validator;(3)Magnetic ink document reader;(4)Automatic vending machines and validator modules;
