USB2510T Transverse High-Field USB Magnetometer

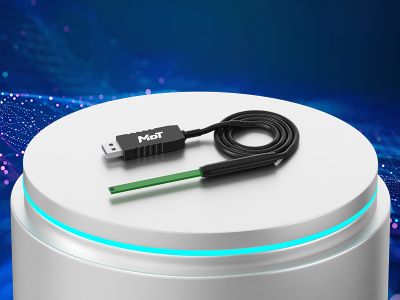

  • USB2510T-big
Part No.：USB2510T
Measurement Range(Gs)：-30k to 30k
Sensing Direction：Z
Hysteresis (Gs)：
Uncorrected Nonlinearity：2%FS (Fit@±5kGs)
RMS Noise（mOe）：75
Temperature Coefficient of Sensitivity（%/℃）：-0.06
Sampling Frequency：110

Description

The MDT USB2510T is a single-axis digital magnetometer that is intended for the measurement of magnetic fields aligned perpendicular to the long axis of the rigid probe at frequencies less than 100 Hz. The MDT USB2510T combines a high-field magnetic field sensor with plug-and-play USB data acquisition electronics and software to provide a single-axis digital magnetometer system in a simple low-cost form factor. It is designed such that the user may use it directly combined with the proprietary MDT graphical user interface (GUI), controlled with a terminal emulator program, or integrated into the user’s custom written program. The GUI can be run on desktop computer, a notebook, or a Windows tablet. Additionally, the probe electronics may be reprogrammed by the user using freely available open source Arduino development tools. The MDT USB Magnetometer is thus a complete development tool that allows a user a simple means for experimenting with MDT sensors, sensor applications, and developing sensor algorithms.

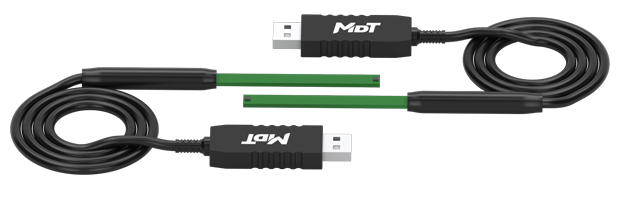

usb-绿色USB2510T

Features and Benefits

iconHigh-Field sensing technologyiconMeasurement range of -30 kGs to 30 kGs
icon5 digit resolutioniconPlug and play USB interface
iconPowered from USB busiconGraphical user interface
iconCommand line user interfaceiconManual range selection
iconAdjustable filtering and averagingiconSimple zeroing and calibration
iconCustomizable linearizationiconDocumented programming interface
iconReconfigurable hardwareiconManual and automatic triggering

Applications

iconHigh field laboratory measurementsiconAutomated data acquisition and control
iconMaterials researchiconNon destructive testing
iconMagnetic object trackingiconSensor algorithm development
iconSTEM educationiconHobby and DIY


[Magnetometer Documentation] Download: MDT_USB Magnetometer.rar
