AGV-TMR25LC High-Frequency, High-Sensitivity AGV Magnetic Guide Sensors

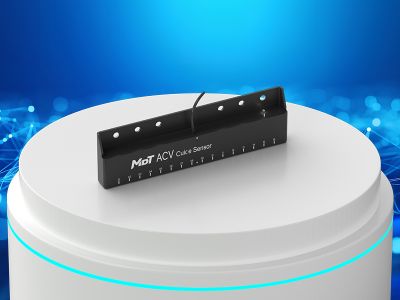

  • AGV-TMR25LC-big
Part No.：AGV-TMR25LC
Supply Voltage(DC, V)：10～30
Current(mA)：50
Communication Form：RS232, CANopen, CAN customizable
Communication Data：Position and ON/OFF Status Indicator
Operating Temperature(℃)：-25～80
Accuracy(mm)：10
Resolution(mm)：5
Detecting Flying Height(mm)：10～60
Magnetic Field Range(Gs)：5～25
Response time(ms)：5
Size(mm×mm×mm)：180×17×50
Protection Grade：IP67

Description

AGV-TMR25LC is 16-channel digital output magnetic guide sensors that support RS-485, CAN, and customizable CAN protocol. Users can customize specifications using the RS-232 interface. It is available as standard with N pole, S pole and N/S pole magnetic modes including corresponding LED indicators. With 16-channel digital signal and 1 mm accuracy absolute position output, AGV-TMR25LC sensor is adaptive to installation height and tape width with excellent protection against magnetic material interference. Incorporating tunneling magnetoresistance (TMR) technique, AGV-TMR25LC sensor is designed to provide excellent temperature characteristics, good consistency, fast frequency response, high sensitivity and low power consumption performance.

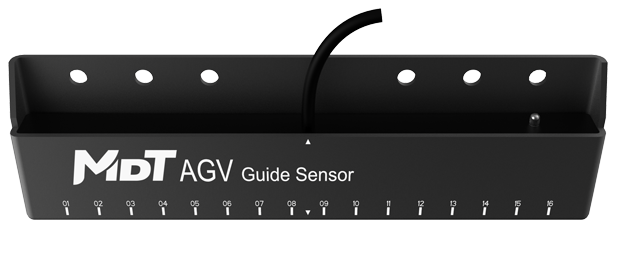

agv-tmr25lcAGV-TMR25LC

Features and Benefits

iconCustomizable CAN protocol and RS485 protocoliconRS-232 customizable
iconMagnetic pole indicatoricon16-channel digital output
icon1 mm accuracy absolute position outputiconSupport 3 magnetic tracks detection
iconAdaptive installation heighticonN pole, S pole and N/S poles detection modes
iconReverse polarity protection, overload protection, surge suppression

Applications

iconMagnetic navigation with tape/markericonAutomated guided vehicle (AGV)
iconAutomated guided cart (AGC)iconTrackless mobile shelving
iconLogistics sortation


Download:   AGV-TMR25XX WINCC
