TMR7616-C Current Sensor IC

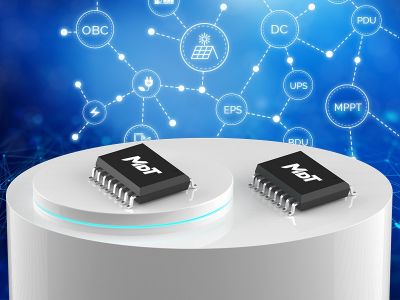

  • TMR7616-C-big
Part No.：TMR7616-C
Nominal current(A)：/
Current range(A)：±20~±65
Voltage(V)：3.3/5
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±1~±3
Linearity(%FS)：0.5
Offset(mV)：±10~±30
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：0.8
Operating Temperature(℃)：-40~+125

Description

The TMR7616-C series current sensor IC operate on the principle of electromagnetic induction with high sensitivity, high signal-to-noise ratio tunneling magnetoresistance (TMR) sensors. With an internal conditioning circuit and electrical isolation between the primary and secondary sides, it can accurately measure current signals in forms of direct current (DC), alternating current (AC), and pulses.

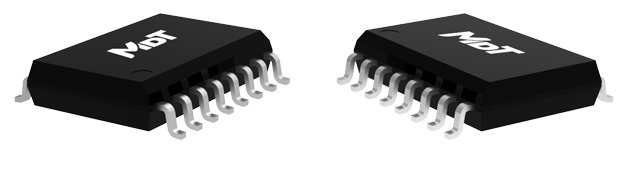

TMR7616-CTMR7616-C

Features and Benefits

icon16-pin SOPW packageiconHigh sensitivity
iconLow noiseiconHigh bandwidth, fast response
iconExcellent temperature stabilityiconRoHS and REACH compliant

Applications

iconFrequency converter current detectioniconMotor drive
iconPhotovoltaic invertericonOverload protection
iconPower supply monitoring
