TMR7307-C Isolated, Wide Bandwidth, Open Loop TMR Current Sensor
  • TMR7307-C-big
Part No.：TMR7307-C
Nominal current(A)：20～50
Current range(A)：±20～±50
Voltage(V)：5
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±1～±2.5
Linearity(%FS)：/
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40～+105

Description

TMR7307-C series current sensor is a type of TMR based isolated, open loop current sensor. Benefits the wide bandwidth, it is suitable for measuring DC, AC, pulse and mixed types of current signals. The TMR7307-C series provides multiple current options as 20A, 25A, 32A, 40A, 50A. The through-hole structure and onboard type facilitates the wire insertion of MC4 like PV terminals, it is well suitable for the compact solar inverter applications.

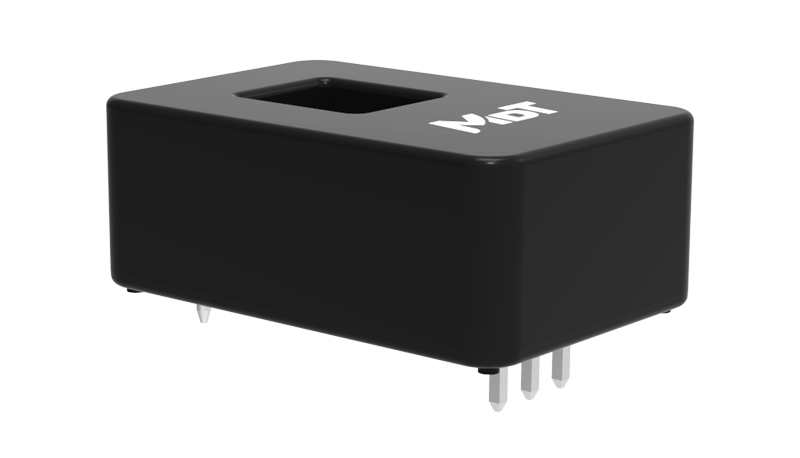

auto_2866.pngTMR7307-C

Features and Benefits

iconTMR sensing technologyiconFixed offset voltage and sensitivity
iconMultiple current options: 20A, 25A, 32A, 40A, 50AiconGalvanic isolation between primary and secondary circuits
iconFast response time: 1 μs Typ.iconLow temperature drift of offset voltage and sensitivity
iconWide bandwidth: 500 kHz Typ.iconThrough-hole onboard type, MC4 like terminal is compliant

Applications

iconAC variable speed driversiconSolar inverter
iconCombiner boxiconPower supplies for welding
iconSwitching mode power supply (SMPS)
