TMR7502-B Unibody Low Temperature-Drift Current Sensor

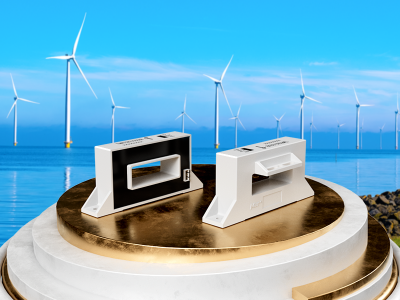

  • TMR7502-B-big
Part No.：TMR7502-B
Nominal current(A)：500 to 2500
Current range(A)：±1500 to ±5500
Voltage(V)：±10 to 15
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.5/±1.5
Linearity(%FS)：±0.5
Offset(mV)：±10/±20
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：5
Operating Temperature(℃)：-40 to +105

Description

TMR7502-B is an open loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

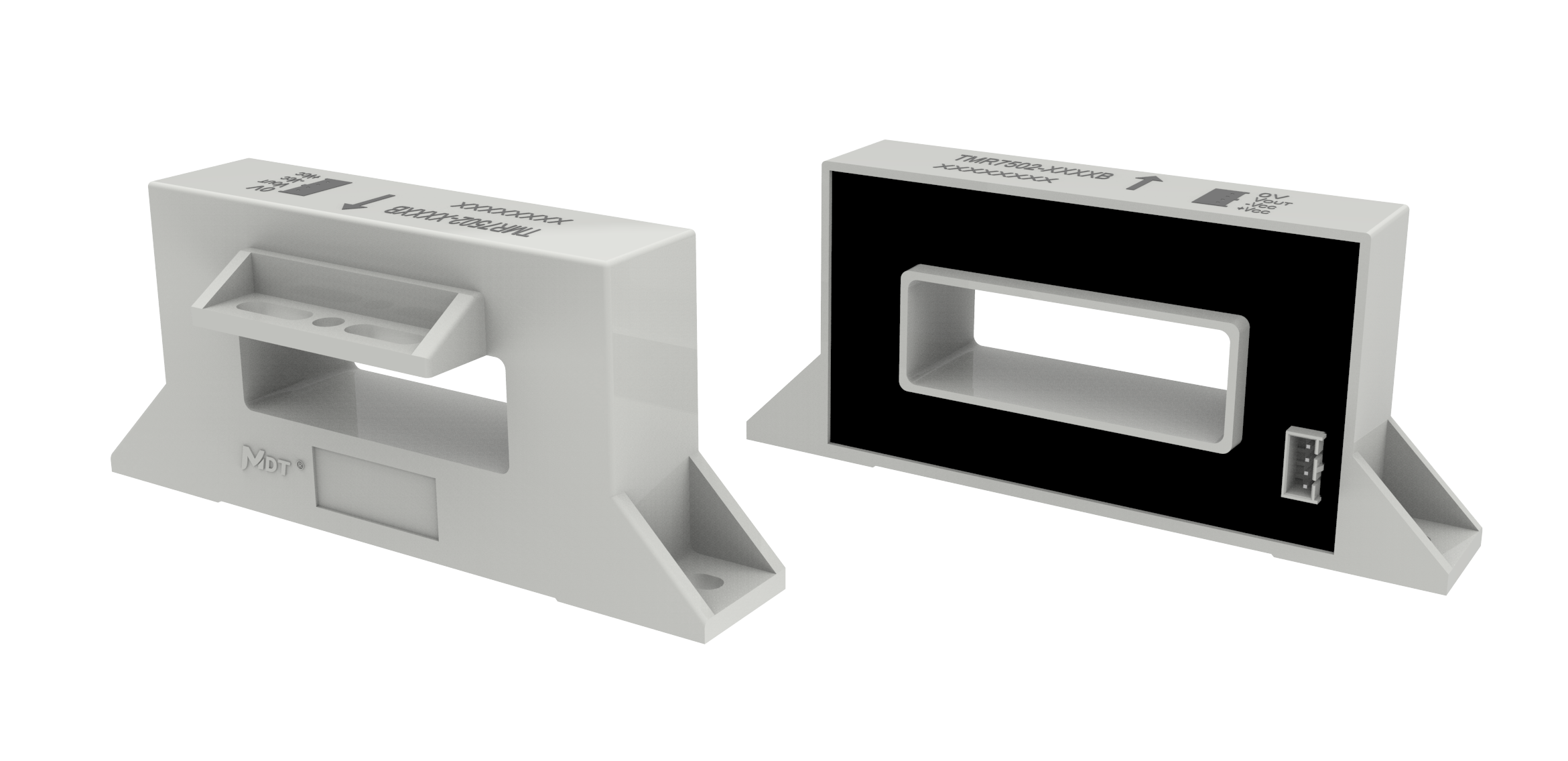

TMR7502-BTMR7502-B

Features and Benefits

iconLow temperature drifticonGalvanic isolation
iconHigh immunity to external interferenceiconRoHS & REACH compliant

Applications

iconDC motor drivesiconUninterruptible power supplies (UPS)
iconInverter and variable frequency drives (VFD)iconSwitching power supplies
iconPower supplies for welding application

The information provided herein by MultiDimension Technology Co., Ltd. (MDT) is believed to be accurate and reliable. The technology disclosed by MDT does not infringe the patents of other companies and owns independent intellectual property rights. We reserve the right to change the specification of products and/or the information given herein at any time to improve product quality, reliability and functionality. MDT does not assume any liability arising out of the application and use of its products.
