Description | |

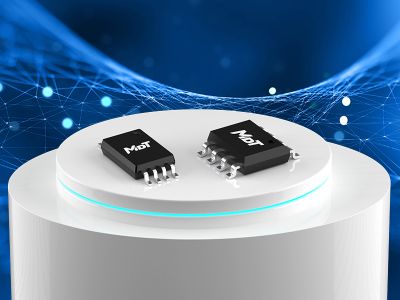

The TMR3083 high-precision magnetic angle sensor adopts two orthogonal push-pull Wheatstone bridge design, and each bridge contains four high-sensitivity TMR sensing elements. Such design effectively compensates thermal drift ensuring high performance in harsh conditions. The voltage signals generated by the two sensor axes exhibit a sinusoidal relationship with the angle of the magnetic field in general angle sensor applications, when a magnet is positioned above the TMR3083 sensor to provide a magnetic field parallel to sensor surface. The TMR3083 achieves low angle error under 0.8 degree for applied magnetic field between 200 Gs and 800 Gs. The TMR3083 is available in TSSOP8 with P/N TMR3083TP. |  TSSOP8 |
Features and Benefits | |
 Tunneling magnetoresistance (TMR) technology | SIN/COS differential analog output |
| Wide range supply voltage | Excellent temperature stability |
| RoHS and REACH compliant | Two bridges in one package |
| Excellent resistance to external magnetic field interference | AEC-Q100 under qualification |
Applications | |
| Absolute angle sensor | Steering wheel angle sensor |
| Electric power steering motor shaft angle sensor | Pedal position sensor |
| Throttle position sensor | |
