TMR7553-F Unibody Precision Current Sensor

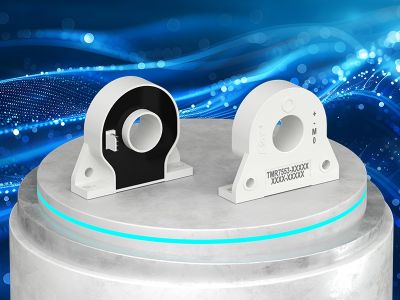

  • TMR7553-F-big
Part No.：TMR7553-F
Nominal current(A)：100 to 300
Current range(A)：±200 to ±600
Voltage(V)： ±15
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.1/±0.3
Linearity(%FS)：±0.05
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7553-F is a close loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

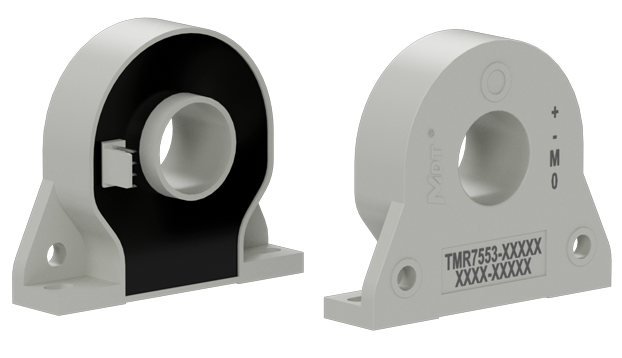

tmr7553-pTMR7553-F

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconUltra low temperature drifticonFast response time
iconGalvanic isolationiconHigh immunity to external interference
iconAnti-CAFiconRoHS & REACH compliant

Applications

iconDC motor drivesiconInverter and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconSwitching power supplies
iconPower supplies for welding application
