TMR1222 MicroAmpere Dual-Axis Bipolar Magnetic Switch Sensor

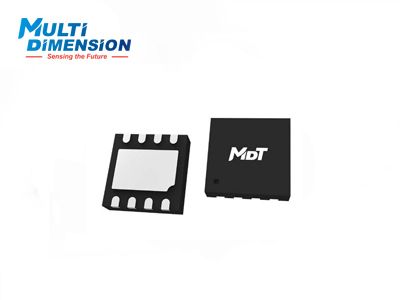

  • TMR1222-big
Part No.: TMR1222
Type: Bipolar
Supply Voltage(V): 1.8 to 5.5
Power Consumption(μA): 1.5 μA
Operating Modes: continuous power
Sensing Direction: X/Y-axis
Bop (Gs,25°C)(Gs): 17
Brp (Gs,25°C)(Gs): -17
Output Interface: CMOS
Package: DFN8L
Lead Time: In stock

Description

The TMR1222 magnetic switches integrated the tunneling magnetoresistance (TMR) magnetic sensor and CMOS circuitry, which is able to detect the change of magnetic field and output high and low voltage signals for high accuracy position detection.

Unlike Hall/AMR sensors, TMR sensors with extremely high resistance values allows TMR1222 to achieve the supply current as low as 1.5 μA while operating in the full-time power supply mode, and maintaining the response frequency of the magnetic signal is 1 kHz. Therefore, the TMR1222 can provide true continuous detection of magnetic field signals, avoiding sampling errors from the traditional time-sharing power supply mode.

DFN8LDFN8L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity
iconHigh frequency response: typ. 1 kHziconBipolar latching operation
icon Wide range supply voltages: 1.8 V to 5.5 ViconCMOS push-pull output
iconLow power consumption: supply current 1.5 μAiconExcellent temperature stability
icon High tolerance to external magnetic field interferenceiconRoHS & REACH compliant

Applications

iconUtility meters: water, gas, and heat metersiconProximity switches
iconSpeed sensingiconLinear and rotation position sensing
iconLinear and rotation direction sensing
