TMR2084 TMR Linear Magnetic Sensor

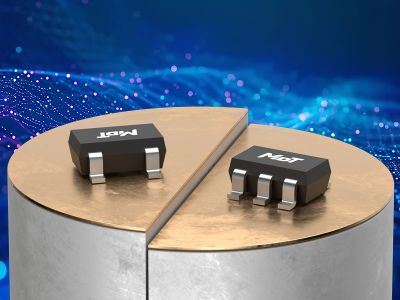

  • TMR2084-big
Part No.: TMR2084
Bridge Configuration: Full bridge
Supply Voltage(V): 0.5 to 7
Sensitivity (mV/V/Gs): 0.6
Resistance (kΩ): 10
Linear Range (Gs): ±400
Sensing Direction: X-axis
Hysteresis (Gs): 2
Noise (nT/rt(Hz) @1Hz): /
Package: SOT23-5
Lead Time: In stock

Description

TMR2084 TMR linear sensor adopts a unique push-pull Wheatstone full bridge structure utilizing four unshielded high sensitivity TMR sensing elements. This Wheatstone full bridge provides differential voltage output with excellent temperature stability when the applied magnetic field changes parallel to the sensor’s sensitive direction. The TMR2084 is available in SOT23-5 package with P/N of TMR2084S.

SOT23-5SOT23-5

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity
iconNon-linearity: 1.0%iconExcellent temperature stability
icon RoHS and REACH compliant

Applications

iconMagnetometericonCurrent sensor
iconPosition sensoriconRotation sensor
