TMR7406-Q Board Mount High Bandwidth Leakage Current Sensor

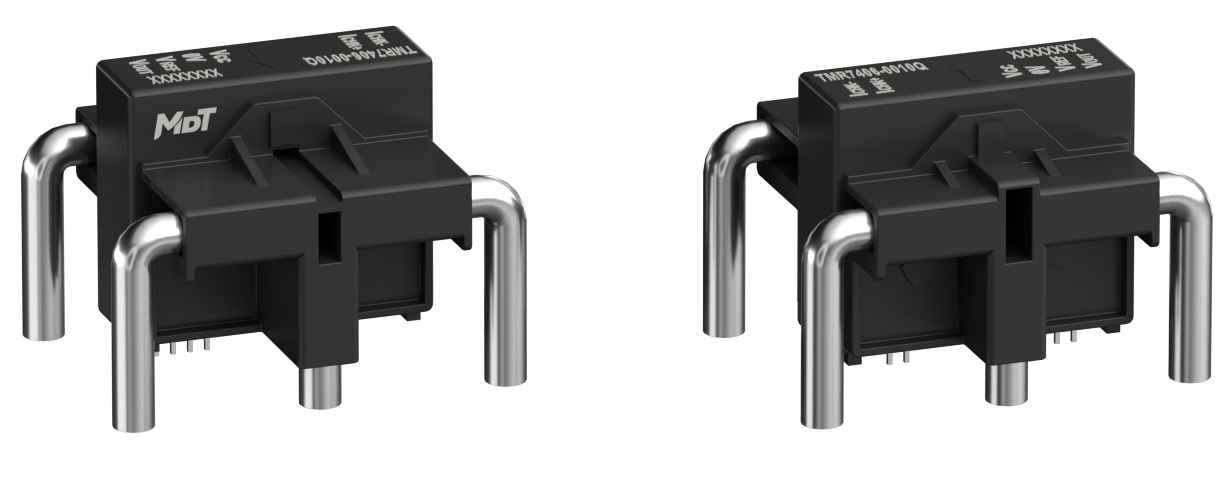

  • TMR7406-Q-big
Part No.：TMR7406-Q
Nominal current(A)：0.3 to 5
Current range(A)：±0.5 ~ ±8.5
Voltage(V)：5
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.6 / ±2
Linearity(%FS)：0.3
Offset(mV)：10
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +105

Description

TMR7406-Q series are (Type B) leakage current sensor base on TMR (Tunnel Magnetic Resistance) technology with galvanic isolation. It may be used for detecting three phase current unbalance. And it can also be for measuring DC, AC and arbitrary waveforms.

This current sensor has built-in self-check coil for its state. It’s output voltage maintain in overload state when excess primary current is injected into the sensor without outputting any high impedance state (Primary current should not be overloaded beyond critical current).

TMR7406-QTMR7406-Q

Features and Benefits

iconTunnel magnetic resistance (TMR) technologyiconHigh bandwidth (400kHz)
iconFast response time (1µs)iconNo excitation current noise
iconStable overload stateiconLow thermal drift
iconSelf check functionalityiconGalvanic isolation
iconRoHS & REACH compliant

Applications

iconBattery energy storage system (BESS)iconPV invertor
iconThree phase unbalance analysisiconEV Charger
iconGrounding error / Earth leackage detection
