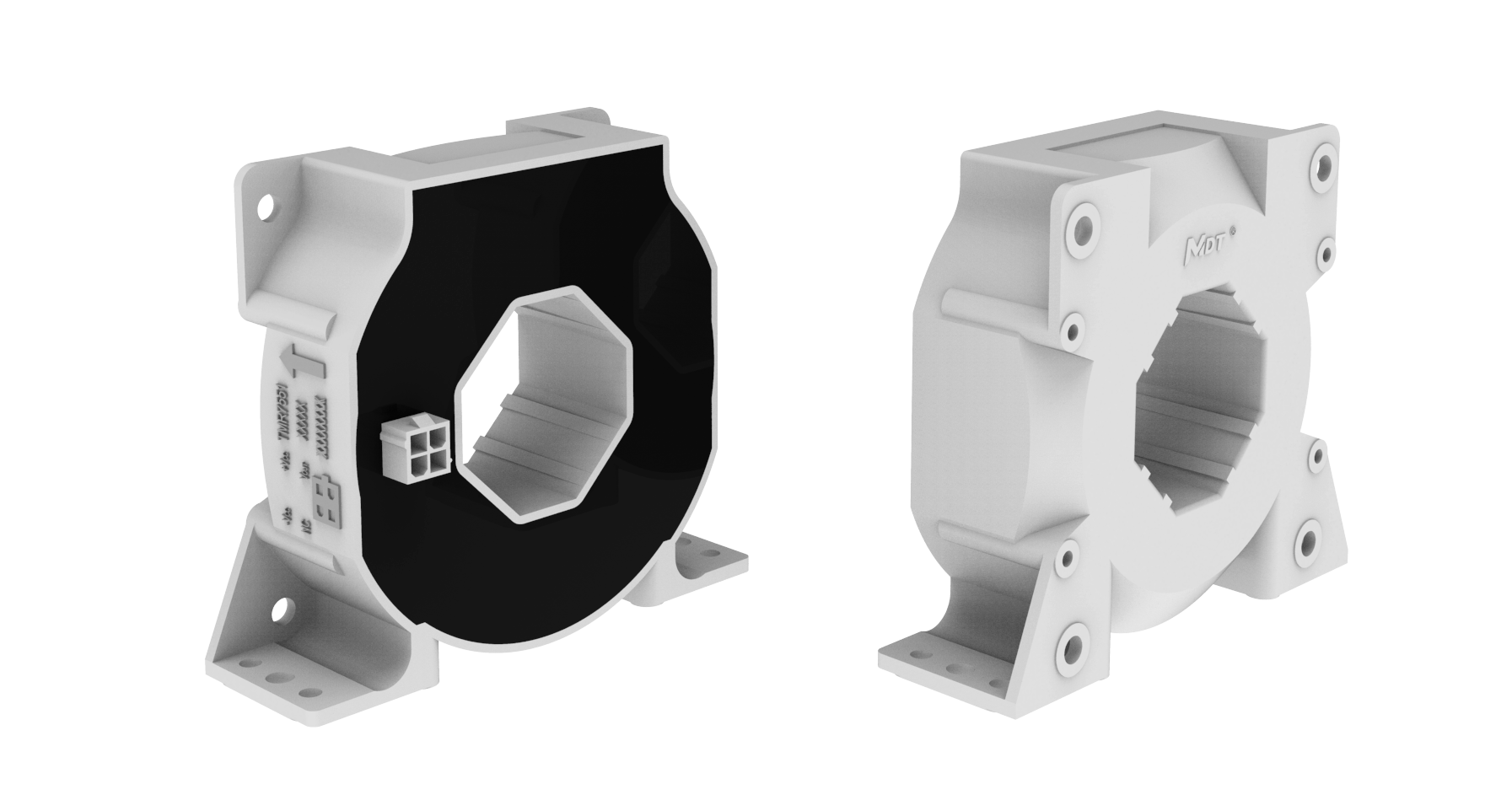

TMR7551-C Unibody Precision Current Sensor
  • TMR7551-C-big
Part No.：TMR7551-C
Nominal current(A)：1000
Current range(A)：±1800
Voltage(V)：±15 to 24
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.3/±0.5
Linearity(%FS)：±0.1
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7551-C is a close loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

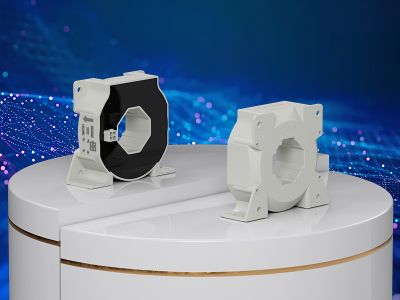

TMR7551-CTMR7551-C

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconUltra low temperature drifticonFast response time
iconGalvanic isolationiconHigh immunity to external interference
iconAnti-CAF

Applications

iconDC motor drivesiconInverter and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconSwitching power supplies
iconWind turbine generator
