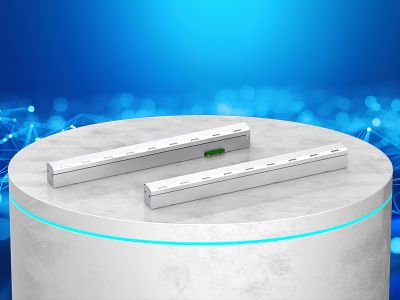

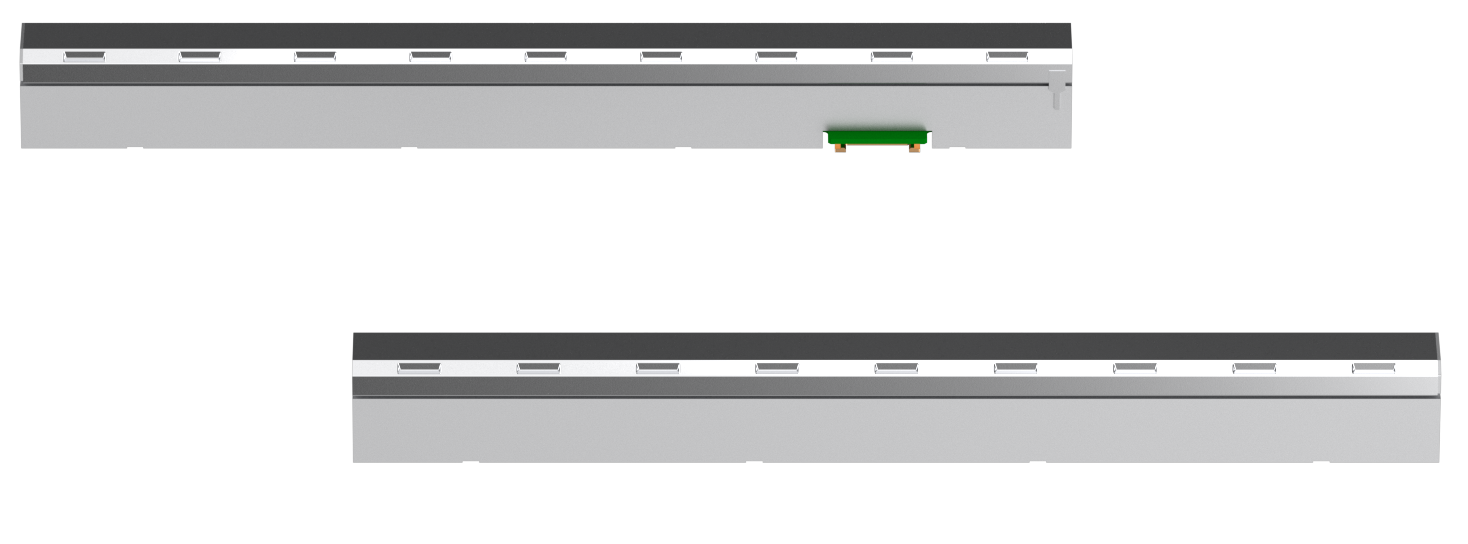

General Description：The TMR6318 is a 720pixels, 100DPI magnetic image sensor (MIS) module. It integrates proprietary TMR magneto-resistance sensor, high-quality magnet to provide high sensitivity performance. The module is designed for full-scale paper bills, bank notes and security documents with magnetic materials and is suitable for scanning width up to 180mm. It features a 1-channel analog output to achieve a scanning rate of 150usec/line @ 5MHz pixel rate; Factory calibrated sensitivity of each pixel.

Features and Benefits：(1)TMR sensor and magnet are integrated in one module;(2)100DPI resolution, 180mm detection width with 720 pixels;(3)1-channel analog output;(4)150usec/line scanning speed @ 5MHz pixel rate;(5)Compact size: L191.5mm x W16mm x H17mm;(6)Built-in signal conditioner for each pixel;(7)Built-in sensitivity calibration in factory;(8)3.3V power supply, 1.65V reference voltage output;(9)No built-in magnet is available: TMR6318N

.

Applications：(1)Currency Verification;(2)Magnetic Document Scanning;(3)Non Destructive Testing.
