TMR2615x-AAC Low Power Large Range TMR Linear Magnetic Sensor

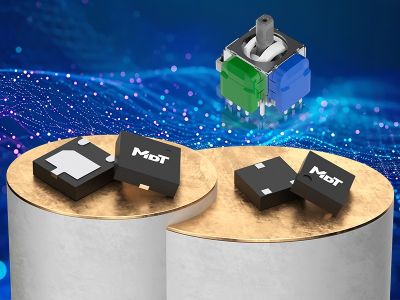

  • TMR2615x-AAC-big
Part No.: TMR2615x-AAC
Bridge Configuration: /
Supply Voltage(V): 1.6 to 5
Sensitivity (mV/V/Gs): User programmable
Resistance (kΩ): /
Saturation Field (Gs): ±500
Sensing Direction: X-axis
Hysteresis (Gs): 2
Noise (nT/rt(Hz) @1Hz): /
Package: DFN3L
Lead Time: In stock

Description

The TMR2615x-AAC is a low-power, wide-linear-range, programmable TMR linear sensor IC by MultiDimension Technology. The IC integrates tunnel magnetoresistance (TMR) sensor, programmable operational amplifier, and DAC circuits to provide a linear relationship between analog output voltage and external magnetic field.

The IC can be widely used in various position sensing applications and supports customers’ demands for low voltage, high resolution, high signal-to-noise ratio, and wide linear range.

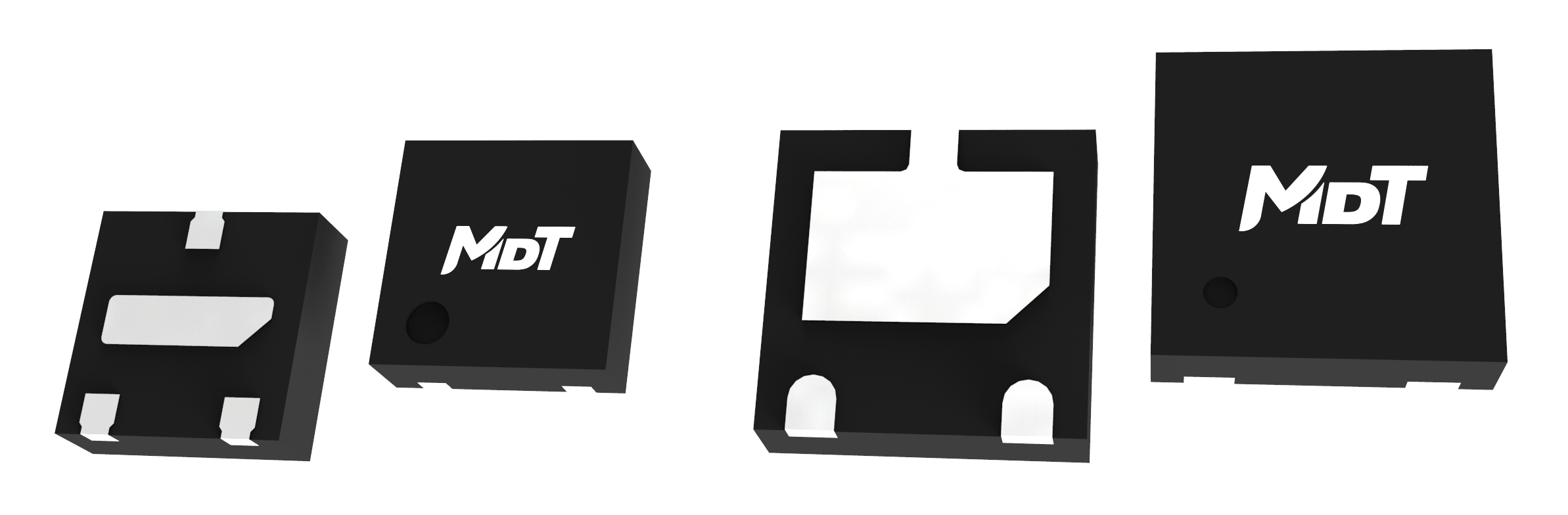

The sensor is either available as TMR2615D-AAC in a DFN3L (2 mm × 2 mm × 0.55 mm) package or as TMR2615F-AAC in DFN3L (1.6 mm × 1.6 mm × 0.5 mm) package. The sensor complies with RoHS standards.

dfn3lDFN3L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconSupply voltage: 1.6 V to 5 V
iconStatic current consumption < 300 μAiconOutput voltage: 5% to 95% VDD
iconOutput voltage follows VDD changesiconLow noise
iconSensitivity with high consistencyicon Low hysteresis
iconRoHS & REACH compliant

Applications

iconJoystick controllericonMagnetic keyboard
iconConsumer electronics
