TMR2617S-AAC Low Power Large Range TMR Linear Magnetic Sensor

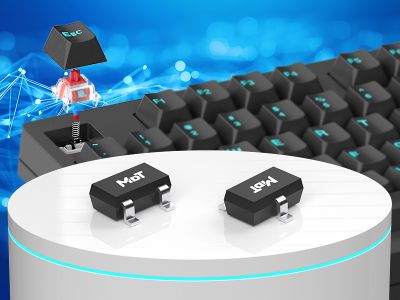

  • TMR2617S-AAC-big
Part No.: TMR2617S-AAC
Bridge Configuration: /
Supply Voltage(V): 1.6 to 5
Sensitivity (mV/V/Gs): User programmable
Resistance (kΩ): /
Saturation Field (Gs): ±1200
Sensing Direction: Z-axis
Hysteresis (Gs): 1.2
Noise (nT/rt(Hz) @1Hz): /
Package: SOT23-3
Lead Time: In stock

Description

The TMR2617S-AAC magnetic sensor is a low-voltage, low-power consumption TMR linear sensor with wide linear range.

The TMR2617S-AAC integrates tunneling magnetoresistance (TMR) sensor, a low-noise operational amplifier, and a DAC circuit, where the analog output voltage maintains a linear relationship with the external magnetic field. The sensor can be widely used in various position sensing applications, supporting customer requirements for low voltage, high resolution, high signal-to-noise ratio, and wide linear range.

The product is packaged in SOT23-3 and complies with RoHS and REACH.

SOT23-3SOT23-3

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconSupply voltage: 1.6 V to 5 V
iconStatic current consumption < 300 μAiconOutput voltage: 5% to 95% VCC
iconOutput voltage follows VCC changesiconLow noise
iconSensitivity with high consistencyiconLow hysteresis
iconZ-axis sensitivityiconRoHS & REACH compliant

Applications

iconMagnetic keyboardiconMagnetic field sensing
iconPosition sensing
