TMR3017 High Accuracy Analog TMR Angle Sensor
  • TMR3017-big
Part No.: TMR3017
Type: Analog Series
Supply Voltage(V): ≤ 5.5
Angle Measurement(°): 360°
Resistance(kΩ): 200
PP (mV/V): 150
Field Operating Range(Gs): 200 to 800
Angular Error: /
Output: Analog
Package: DFN4L
Lead Time: In stock

Description

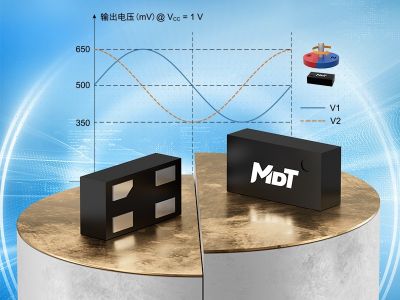

TMR3017 contains a push-pull Wheatstone bridge, which is composed of four high-sensitivity tunneling magnetoresistance (TMR) elements. The sensor outputs a sinusoidal signal, and the period of the signal is that the di rection of the magnetic field rotates 360° in the sensing plane. TMR3017 uses a compact DFN4L (0.8 mm × 0.4 mm × 0.23 mm) package for easy assembly in small spaces.

DFN4LDFN4L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconWide range supply voltage
iconAnalog differential outputiconExcellent temperature stability
iconAdapt to large air gapicon Compact DFN package
iconRoHS & REACH compliant

Applications

iconAngular position sensingiconLinear position sensing
