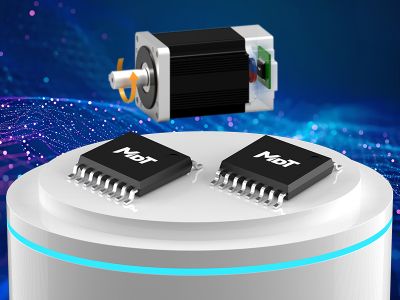

TMR3110 23-bit TMR Magnetic Rotary Encoder
  • TMR3110-big
Part No.: TMR3110
Type: Digital Series
Supply Voltage(V): 3.3 to 5
Angle Measurement(°): 360°
Resistance(kΩ): /
PP (mV/V): /
Field Operating Range(Gs): 200 to 800
Angular Error: < ±0.05°
Output: SPI/ABZ/UVW/PWM
Package: TSSOP16
Lead Time: In stock

Description

The TMR3110 is a contactless, high-precision, and high-speed magnetic rotary encoder sensor, which integrated with tunneling magnetoresistance (TMR) sensors and CMOS digital signal processing circuitry.

The TMR3110 senses the single pole-pair magnet rotation above the chip by TMR sensors, collects the rotating magnetic field signal, transmits it to the digital processing unit, and calculates the rotation angle.

The TMR3110 supports 3-wire and 4-wire SPI working modes, allowing the client MCU to read 23-bit absolute position information through the SPI protocol. Additionally, the chip also provides a 12-bit resolution PWM output interface, with the PWM frequency configurable in four levels according to customer requirements.

It is able to output A/B phase programmable incremental position signal with 1 to 4096 pulse and programmable zero-point (Z phase) signal. TMR3110 also provides inverted UVW output, analog and PWM signals, with rotational speed up to 40,000 RPM.

The TMR3110 can self-calibrate to compensate non-linearities caused by imperfect installation.

TSSOP16TSSOP16

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconSupply voltage: 3.3 V to 5 V
iconAvailable in SPI, ABZ, UVW and PWM interfacesiconSupply current: 10 mA (typical)
icon Programmable A/B/Z interpolation factors from ×1 to ×4096iconSpeeds up to 40,000 RPM
iconProgrammable inverted UVW output resolution in 1 to 32 pole-pairiconAngular output delay < 2 μs
iconIntegrated automatic gain calibration functioniconAngular repeatability < ±0.05°
iconIntegrated EEPROM rewritable over 1000 cyclesiconOn and off axis measurements
iconSupports 0° to 360° absolute angle detectioniconSelf-calibration function
iconRoHS and REACH compliant

Applications

iconContactless angular position measurementiconBrushless motor position sensing
iconRotary speed sensingiconClose loop stepper system
iconServo encoder
