TMR3016 High Accuracy Analog TMR Angle Sensor

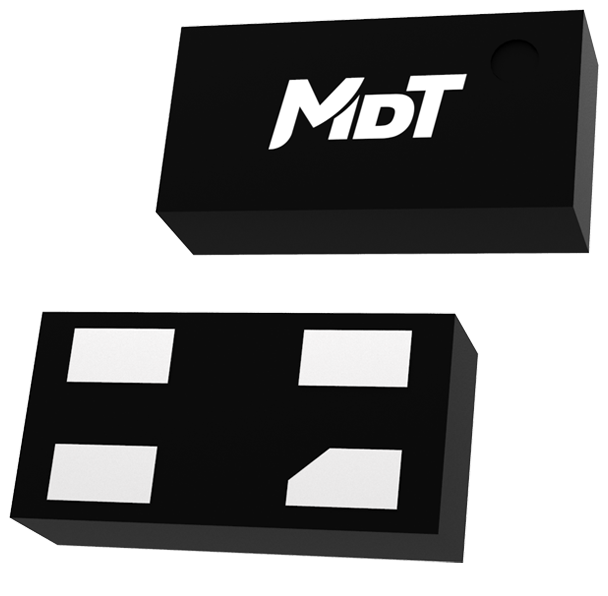

  • TMR3016-big
Part No.: TMR3016
Type: Analog Series
Supply Voltage(V): ≤ 5.5
Angle Measurement(°): 360°
Resistance(kΩ): 2.5
PP (mV/V): 180
Field Operating Range(Gs): 200 to 800
Angular Error: /
Output: Analog
Package: DFN4L
Lead Time: In stock

Description

TMR3016 contains a push-pull Wheatstone bridge, which is composed of four high-sensitivity tunneling magnetoresistance (TMR) elements. The sensor outputs a sinusoidal signal, and the period of this signal corresponds to a 360° rotation of the magnetic field direction within the sensing plane, independent of the externally applied magnetic field strength. TMR3016 uses a compact DFN4L (0.8 mm × 0.4 mm × 0.23 mm) package for easy assembly in small spaces.

DFN4LDFN4L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconWide range supply voltage
iconAnalog differential outputiconExcellent temperature stability
iconAdapt to large air gapicon Compact DFN package
iconRoHS & REACH compliant

Applications

iconAngular position sensingiconLinear position sensing
