TMR1362 NanoAmpere Fast Response Omnipolar Magnetic Switch Sensor

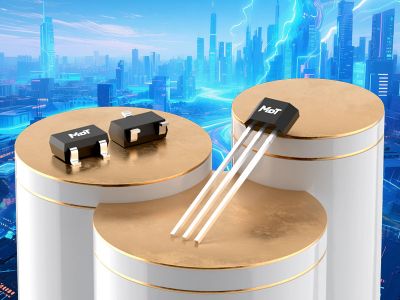

  • TMR1362-big
Part No.: TMR1362
Type: Omnipolar
Supply Voltage(V): 1.8 to 5.5
Power Consumption(μA): 200 nA
Operating Modes: power cycling
Sensing Direction: X-axis
Bop (Gs,25°C)(Gs): ±17
Brp (Gs,25°C)(Gs): ±12
Output Interface: CMOS
Package: SOT23-3 TO92S LGA3L(2×1.5×0.63)
Lead Time: In stock

Description

TMR1362 is an omnipolar magnetic switch integrated the tunnel magnetoresistance (TMR) magnetic sensor and CMOS circuitry, which is able to detect the change of magnetic field and output high and low voltage signals for high accuracy position detection.

As the time-sharing power supply version of the TMR130x series, TMR1362 series sensor provide average supply current as low as 200 nA and maintaining the switching frequency of the magnetic signal is 50 Hz. Compared with Hall/AMR sensors that also use power-cycling mode, the switching frequency of TMR1362 is several times higher, and the average supply current is only a fraction of that of Hall/AMR sensor products.

TMR1362 allows a wide range of operating supply voltages from 1.8 V to 5.5 V with excellent temperature characteristics, and can meet the requirements of most applications. TMR1362 is available in three compact SOT23-3, TO92S and LGA3L (2mm × 1.5mm × 0.63mm) packages.

SOT23-3、TO92S、LGA3LSOT23-3                TO92S                LGA3L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity
iconFast switching frequency at 50 HziconOmnipolar operation
icon Wide range supply voltages: 1.8 V to 5.5 ViconCMOS push-pull output
icon Ultra-low power consumption at 200 nAiconExcellent temperature stability
icon High tolerance to external magnetic field interferenceiconRoHS & REACH compliant

Applications

iconUtility meters: water, gas, and heat metersiconProximity switches
iconSpeed sensingiconLinear and rotation position sensing
iconWake-up switch
