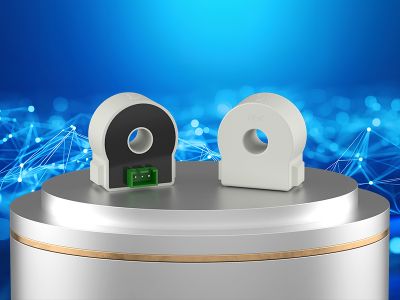

TMR7401-1000mA Leakage current sensor
  • TMR7401-1000-big
Part No.：TMR7401-1000mA
Nominal current(A)：1
Current range(A)：0 to ±1.5
Voltage(V)：5
Vout(V)：3.833
RL(kΩ)：≥10
Accuracy(%FS)：±2
Linearity(%FS)：1
Offset(mV)：±30
Offset drift(mV/℃)：±1
Output drift(mV/℃)：±0.5
Response(μs)：10
Operating Temperature(℃)：-40 to 85

Description

TMR7401-1000mA leakage current sensor based on magnetic induction principle, incorporates our tunneling magnetoresistive (TMR) sensor with high sensitivity and high SNR. With the build-in conditioning circuits for offset voltage, temperature and non-linearity compensation, it provides accurate measurement of DC, AC and pulse current. TMR7401 provides excellent primary to secondary galvanic isolation, low power consumption and compact size design.

TMR7401TMR7401

Features and Benefits

iconOpen loop current sensoriconLow power consumption
iconHigh accuracyiconSingle power supply
iconLow linearity erroriconLow offset drift over temperature

Applications

iconSingle phase or three phase nominal current measurementiconLeakage current measurement
iconResidual current measurement in DC sourcesiconTelecommunication power supply
