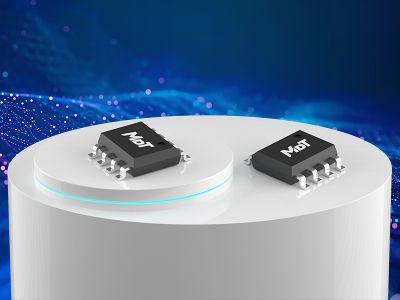

TMR-MAC005 Microampere Current Sensor
  • TMR-MAC005-big
Part No.：TMR-MAC005
Nominal current(A)：0.001
Current range(A)：0.01
Voltage(V)：/
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：/
Linearity(%FS)：/
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：/
Operating Temperature(℃)：/

Description

TMR-MAC005 is a microampere current sensor incorporating high sensitivity tunneling magnetoresistive (TMR) sensor and Integrated coil with anti-magnetic interference design. TMR-MAC005 provides 10 mA measuring range, 150 nA and standard SOP8 package.

auto_2892.pngSOP8

Features and Benefits

iconTunneling magnetoresistance techniqueiconLow current measurement
icon150 nA high resolutioniconExcellent temperature stability
iconWide operating voltage rangeiconCompact size

Applications

iconWeak current measurementiconBioelectric current measurement
iconIndustrial sensoriconInstrument and equipment
