AGV-TMR15XN 16-Channel, High Sensitivity AGV Magnetic Guide Sensors

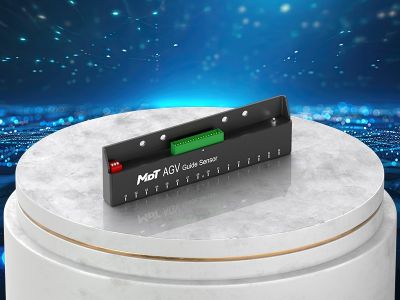

  • AGV-TMR15XN-big
Part No.：AGV-TMR15XN
Supply Voltage(DC, V)：10～30
Current(mA)：50
Communication Form：NPN
Communication Data：Circuit Switch ON/OFF
Operating Temperature(℃)：-25～80
Accuracy(mm)：10
Resolution(mm)：5
Detecting Flying Height(mm)：10～50
Magnetic Field Range(Gs)：5～25
Response time(ms)：1
Size(mm×mm×mm)：178×17×50
Protection Grade：IP65

Description

The AGV-TMR15XN is 16-channel NPN and PNP output magnetic guide sensor with 10 mm detection accuracy. It is available as standard with N pole, S pole and N/S pole magnetic operating modes including corresponding LED indicators.

The AGV-TMR15XN is adaptive to installation height and tape width with excellent protection against magnetic material interference. Incorporating tunneling magnetoresistance (TMR) technique, the AGV-TMR15XN is designed to provide excellent temperature characteristics, good consistency, fast frequency response, high sensitivity and low power consumption performance.

agv-tmr15xAGV-TMR15XN

Features and Benefits

iconAdaptive installation heighticonAdaptive magnetic tape width
iconSuperior protection against magnetic material interferenceiconExcellent temperature characteristics
iconMagnetic tape/marker detectioniconN pole, S pole and N/S poles detection modes
iconLED indicators for operating modes

Applications

iconAutomated guided vehicle (AGV)iconAutomated guided cart (AGC)
iconTrackless mobile shelvingiconLogistics sortation

The information provided herein by MultiDimension Technology Co., Ltd. (MDT) is believed to be accurate and reliable. The technology disclosed by MDT does not infringe the patents of other companies and owns independent intellectual property rights. We reserve the right to change the specification of products and/or the information given herein at any time to improve product quality, reliability and functionality. MDT does not assume any liability arising out of the application and use of its products.
