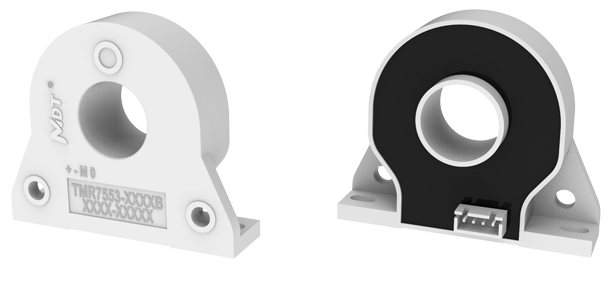

TMR7553-B Unibody Precision Current Sensor
  • TMR7553-B-big
Part No.：TMR7553-B
Nominal current(A)：100 to 300
Current range(A)：±200 to ±600
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.3/±0.5
Linearity(%FS)：±0.1
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7553-B is a close loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

TMR7553-BTMR7553-B

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconUltra low temperature drifticonFast response time
iconGalvanic isolationiconHigh immunity to external interference
iconAnti-CAFiconRoHS & REACH compliant

Applications

iconDC motor drivesiconInverter and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconSwitching power supplies
iconPower supplies for welding application
  • New Products

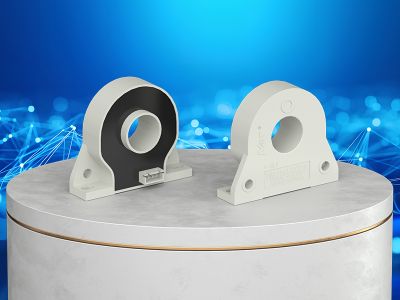

  • TMR7503-F
