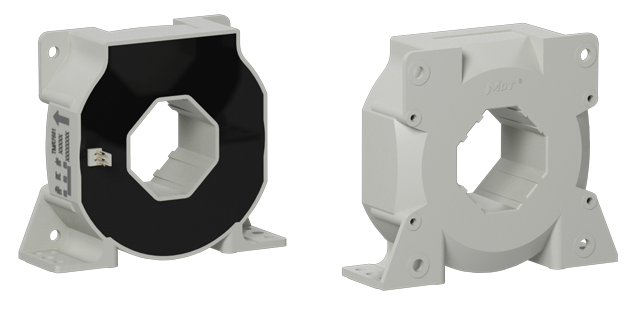

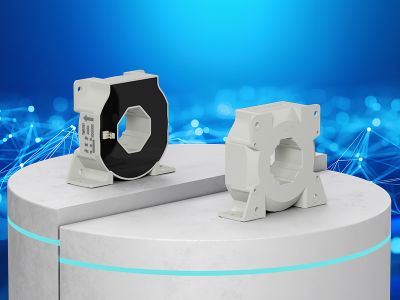

TMR7551-B Unibody Precision Current Sensor
  • TMR7551-B-big
Part No.：TMR7551-B
Nominal current(A)：1000
Current range(A)：±1500
Voltage(V)：±15 to 24
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.3/±0.5
Linearity(%FS)：±0.1
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7551-B is a close loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

TMR7551-BTMR7551-B

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconUltra low temperature drifticonFast response time
iconGalvanic isolationiconHigh immunity to external interference

Applications

iconDC motor drivesiconInverter and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconSwitching power supplies
iconPower supplies for welding application
