AMR2302 High Accuracy, Low Noise Dual Axis Linear Magnetic Sensor

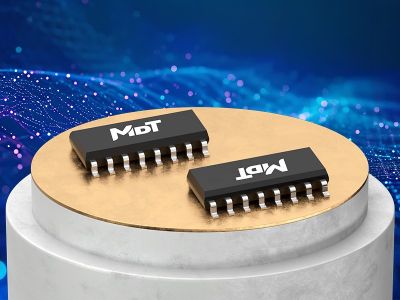

  • AMR2302-big
Part Number: AMR2302
Compatible Part Number: —
Bridge Configuration: /
Supply Voltage(V): 1～12
Sensitivity(mV/V/Gs): 0.7
Resistance(kΩ)0.75
Saturation field(Gs): ±10
Sensing DirectionX/Y-axis
Hysteresis(Gs): 0.05
Noise（nT/rt(Hz) @1Hz）: 0.4
Package: SOP16
Lead Time: In stock

Description

The AMR2302 linear sensor utilizes two push-pull Wheatstone bridges each composed of four highly sensitive AMR sensor elements. These Wheatstone bridges effectively compensate the sensor’s temperature drift to achieve outstanding temperature stability with minimal noise. AMR2302 is available in the SOP16 package.

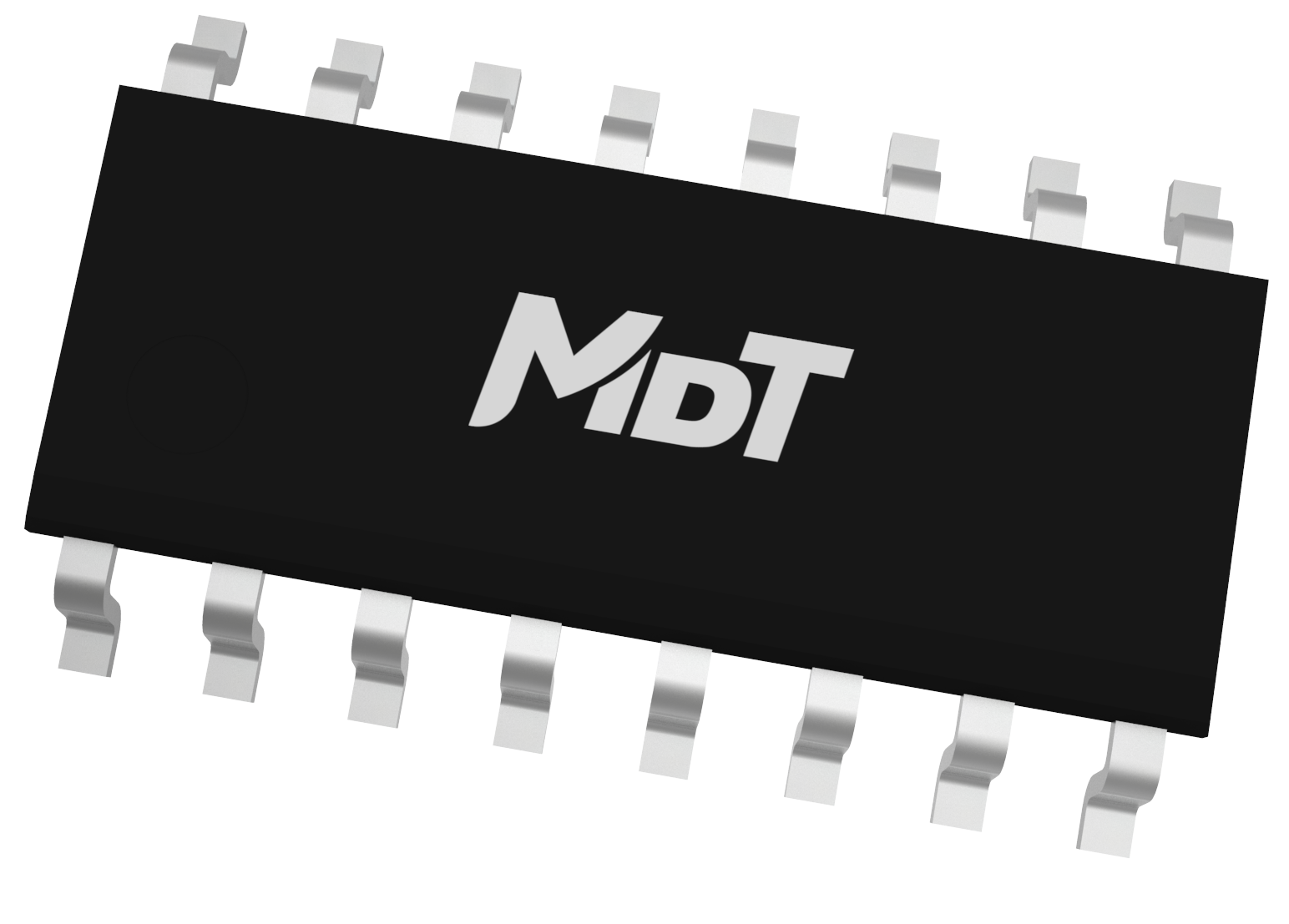

sop16SOP16

Features and Benefits

iconAnisotropic magnetoresistance (AMR) technologyiconWide range supply voltages
iconLow noise density: 300 pT/√Hz@1 HziconLow saturation field
iconExcellent temperature stabilityiconLow hysteresis
iconRoHS & REACH compliant

Applications

iconWeak magnetic field sensingiconCurrent sensor
iconPosition sensoriconMagnetometer
