TMR7552-D Unibody Precision Current Sensor
  • TMR7552-D-big
Part No.：TMR7552-D
Nominal current(A)：6 to 25
Current range(A)：±19.2 to ±80
Voltage(V)：5
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.5/±1
Linearity(%FS)：±0.1/±0.25
Offset(mV)：10/15
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：0.3
Operating Temperature(℃)：-40 to +85

Description

TMR7552-D is a close loop current sensor based on TMR tunnel magnetoresistance for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

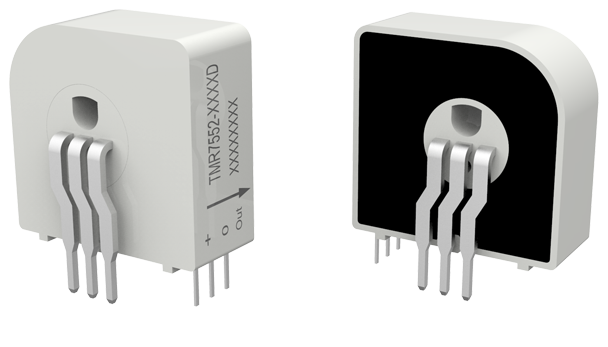

tmr7552-dTMR7552-D

Features and Benefits

iconHigh accuracyiconUltra low temperature drift
iconExcellent linearityiconFlexible for multiple current ranges
iconFast response timeiconHigh stable output at 2.5 V
iconSmall size, suitable for high density PCB application

Applications

iconFrequency conversion, servo motor tractioniconPower supplies for welding application
iconUninterruptible power supplies (UPS)iconSwitching power supplies
iconSolar combiner box
