TMR7506-B Unibody Low Temperature Coefficient Current Sensor

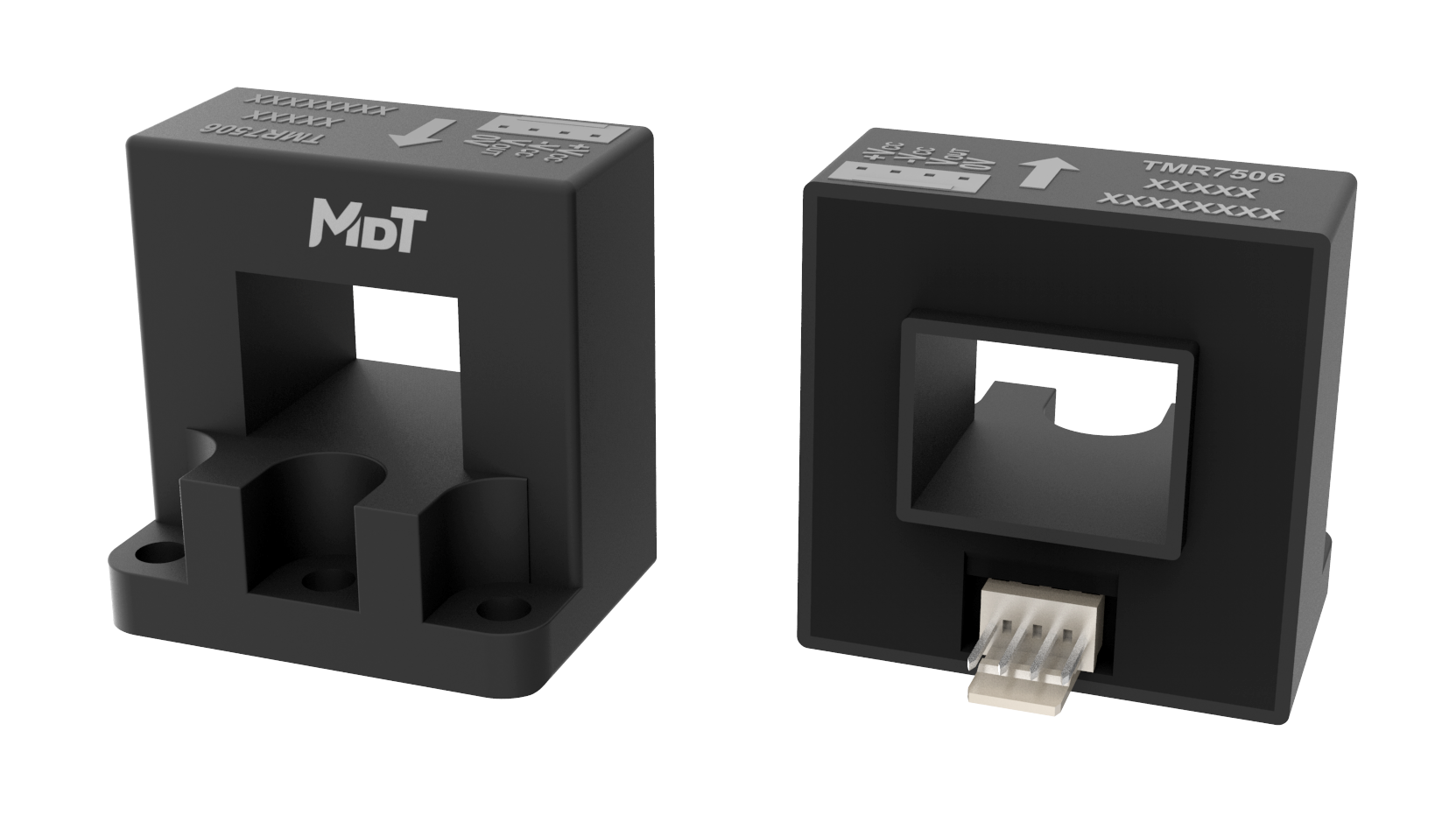

  • TMR7506-B-big
Part No.：TMR7506-B
Nominal current(A)：50～600
Current range(A)：±150～±1000
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.5～±1.5
Linearity(%FS)：0.4
Offset(mV)：±20/±60
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：2
Operating Temperature(℃)：-40～+85

Description

TMR7506-B is an open loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

tmr7506-bTMR7506-B

Features and Benefits

iconLow temperature coefficienticonGalvanic isolation
iconHigh immunity to external interferenceiconExcellent linearity
iconLight weight design

Applications

iconDC motor drivesiconInverters and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconPower supplies for communication devices
iconBattery management system (BMS)iconSwitching power supplies
iconPower supplies for welding application
