TMR7559-C Board Mount Precision Current Sensor

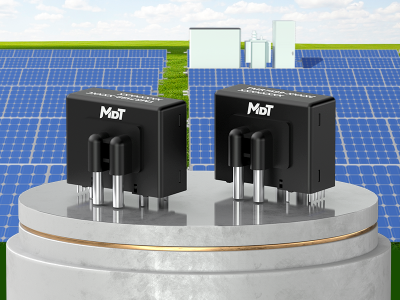

  • TMR7559-C-big
Part No.：TMR7559-C
Nominal current(A)：100 to 250
Current range(A)：±300 to ±500
Voltage(V)：5
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.8/±1.4
Linearity(%FS)：±0.15
Offset(mV)：5
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：0.6
Operating Temperature(℃)：-40 to +85

Description

TMR7559-C is a close loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

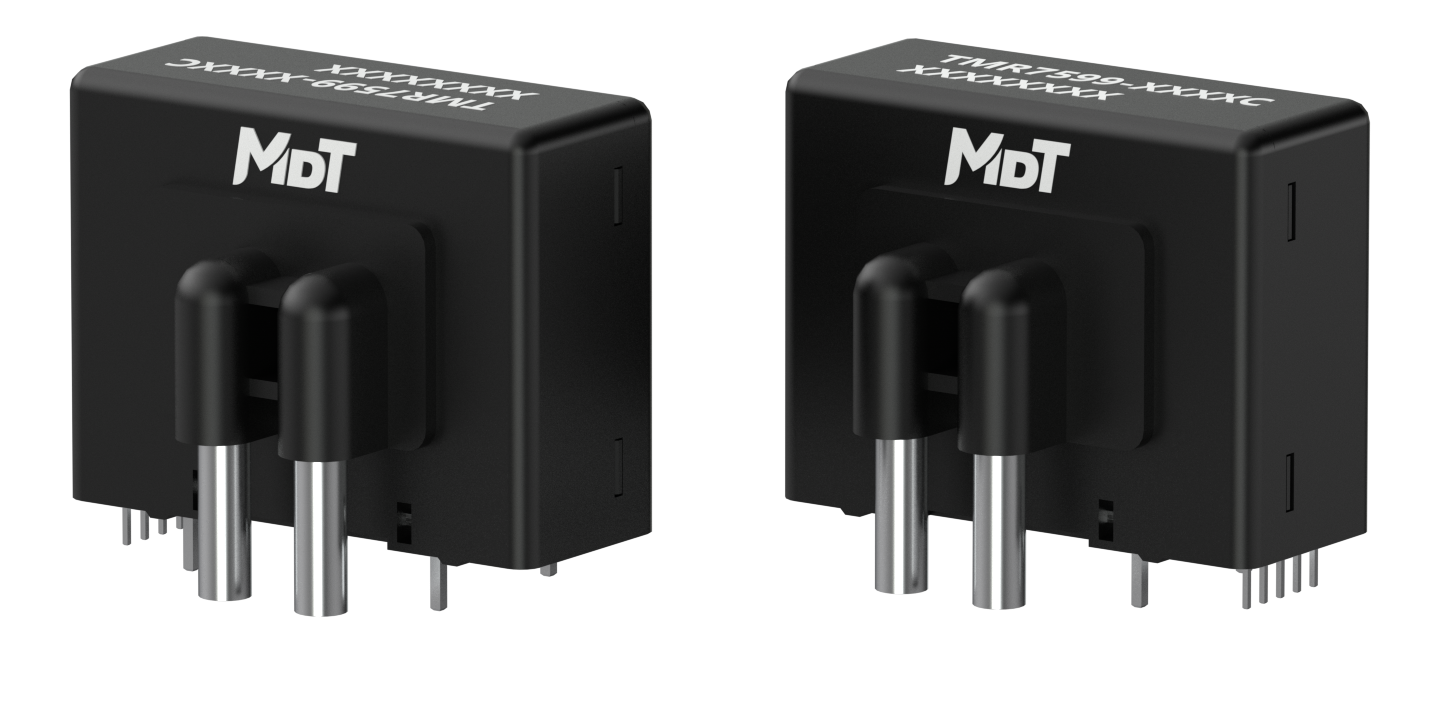

TMR7559-CTMR7559-C

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconLow temperature coefficienticonFast response time
iconGalvanic isolationiconRoHS & REACH compliant

Applications

iconSolar invertericonDirect-current dynamo
iconUninterruptible power supplies (UPS)iconSwitched model power supplies (SMPS)
iconVariable frequency drive (VFD)
