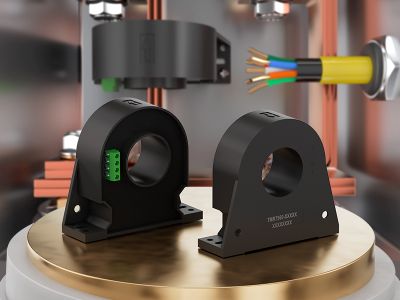

TMR7560-P Unibody Precision Current Sensor
  • TMR7560-P-big
Part No.：TMR7560-P
Nominal current(A)：300/600
Current range(A)：±500/±700
Voltage(V)：±18
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.08/±0.2
Linearity(%FS)：±0.05
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7560-P is a close loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

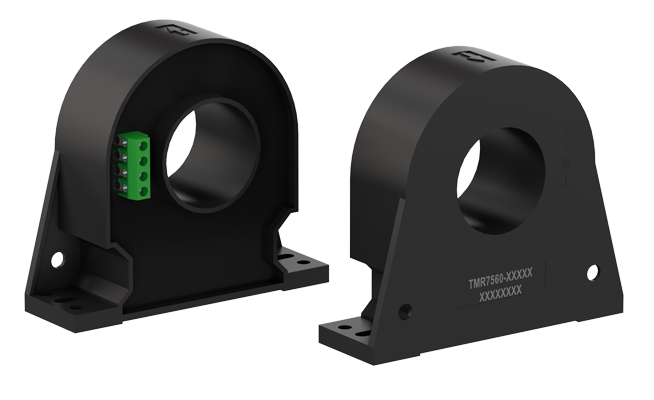

tmr7560-pTMR7560-P

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconUltra low temperature drifticonFast response time
iconGalvanic isolationiconHigh immunity to external interference
iconAnti-CAFiconRoHS and REACH compliant

Applications

iconDC motor drivesiconInverter and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconPower supplies for welding application
iconSwitching power supplies
