TMR8112N Single-axis, Low Noise, High Transient Response Magnetic Sensor

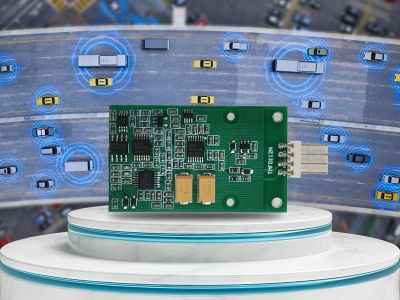

  • TMR8112N-big
Part No.：TMR8112N
Sensing Direction：Single axis
Frequency Response(-3dB)：0 to 10 Hz
Supply Voltage(V)：12
Measuring range(μT)：±300
Sensitivity(mV/μT)：40000
Magnetic Field Spectral Noise Density(pT/√Hz@1Hz)：100
Linearity error(%FS)：1

Description

The TMR8112N features single-axis, low-noise, high transient response magnetic sensors that utilize the miniaturized, ultra-low noise TMR sensor. These sensors employ phase-sensitive detection and weak magnetic signal modulation technology to convert broad passband measurements into narrowband measurements. This tech- nique significantly reduces the interference of 1/f noise, enhancing the signal-to-noise ratio of weak magnetic signals. Consequently, it enables high transient response and high-resolution detection of weak magnetic signals, facilitating ultra-long-distance detection of ferromagnetic materials.

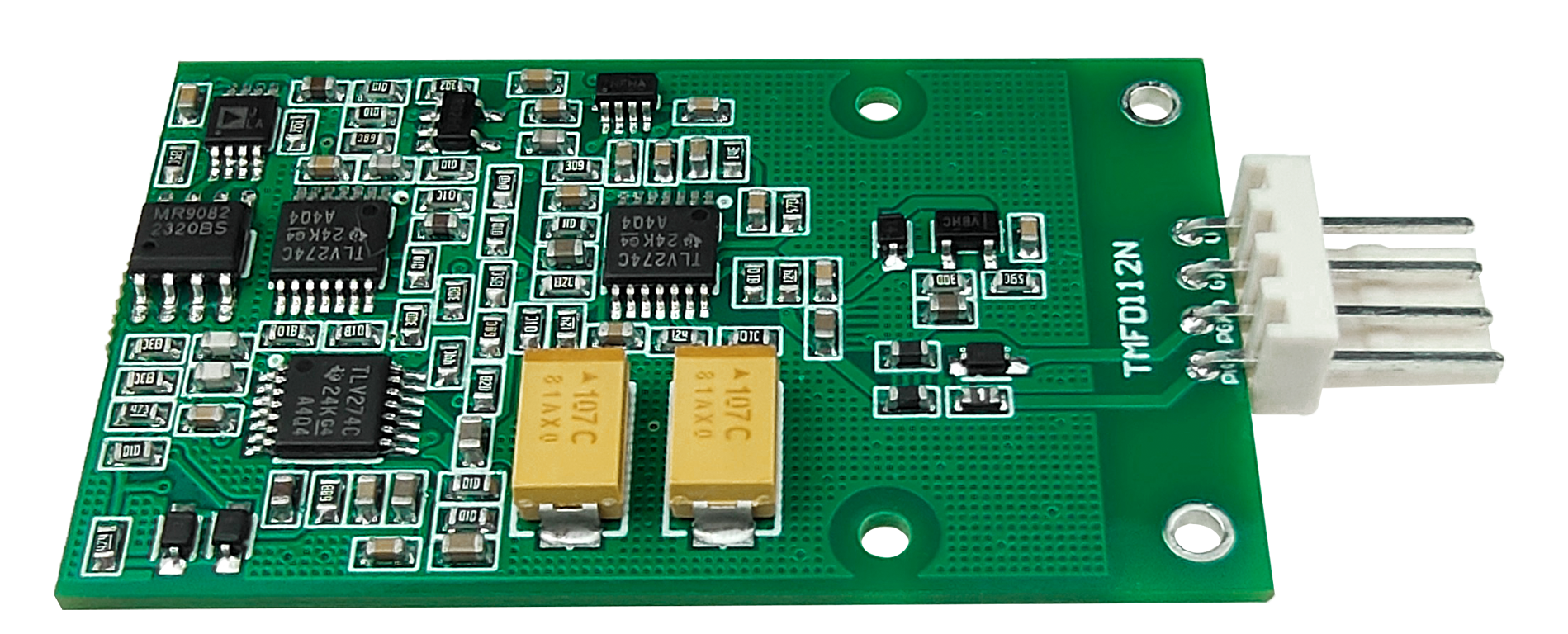

TMR8112NTMR8112N

Features and Benefits

iconHigh-resolution measurementsiconLarge saturation field: typ. ±600 μT
iconHighly integrated design, easy secondary integrationiconWide background magnetic field: typ. ±300 μT
iconExcellent detection capabilities for dynamic weak magnetic fields at low frequencies

Applications

iconSecurity systemiconMagnetic material detection
iconTraffic flow control

The information provided herein by MultiDimension Technology Co., Ltd. (MDT) is believed to be accurate and reliable. The technology disclosed by MDT does not infringe the patents of other companies and owns independent intellectual property rights. We reserve the right to change the specification of products and/or the information given herein at any time to improve product quality, reliability and functionality. MDT does not assume any liability arising out of the application and use of its products.
